TR-508-MAX1-6/NP 6-wheel 25 square wire stripping machine

Categories	Computer Wire Stripping Machine
Brand	Turing
Model	TR-508-MAX1-6/NP
Power	AC220V/50HZ,
Name	wire stripping machine
Feature	Stable Performance
Warranty	1year
Contact	Lily 0086-13715588365
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download DOC
Update Time	May 6,2024

Contact Now

Favorites

Detail Information

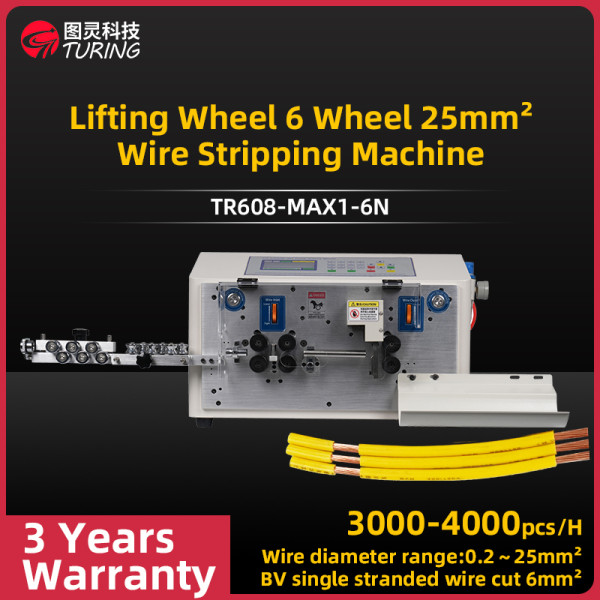

TR-508-MAX1-6/NP 6-wheel 25 square wire stripping machine

TR-508-MAX1-6/NP (6-wheel 25 square wire stripping machine)

(with positive and negative straightener, with NP as key panel)

Weight: 43KG

Dimensions: 470mm×515mm×345mm Power: 550W

Display mode: Chinese and English LCD liquid crystal display Cutting length: 0.1mm-10000mm

Stripping length: thread head 0-50mm, thread tail: 0-50mm

Cutting tolerance: within 0.002×L (L=cutting length)

Cross-sectional area of cutting wire core: 0.2-25mm2 BV single-strand wire cuts 6 square meters

The largest diameter of the catheter: ￠13

Middle peeling: 13 peeling

Tool material: high-quality imported high-speed steel

Stripping speed: 100mm length as unit: 3000-4000 wires/hour

Drive mode: six-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)

Wire stripping speed: cutter speed and wire feeding speed can be adjusted separately: 0 is the slowest, 9 is the fastest

PRODUCT USEINTRODUCTION

Thefully automatic computerized wire stripping machine produced byourfactoryis widely used in wire harness processingin variousindustriessuch as wire harnesses, automotive electricalappliances, instruments andmeters, lamps, household appliances, etc., such as: single-stranded wire,multi-stranded wire, sheathed wire, etc.The processing methods are: cutting,strippinghead and tail, middle stripping, bending, twisting, etc. Themaximum processingcross-sectional area is 0.1-90mm2, and the maximumlength of the cutting section is 100 meters. The main function of themachine is to strip the plastic sheath and the metal core of the wire.
