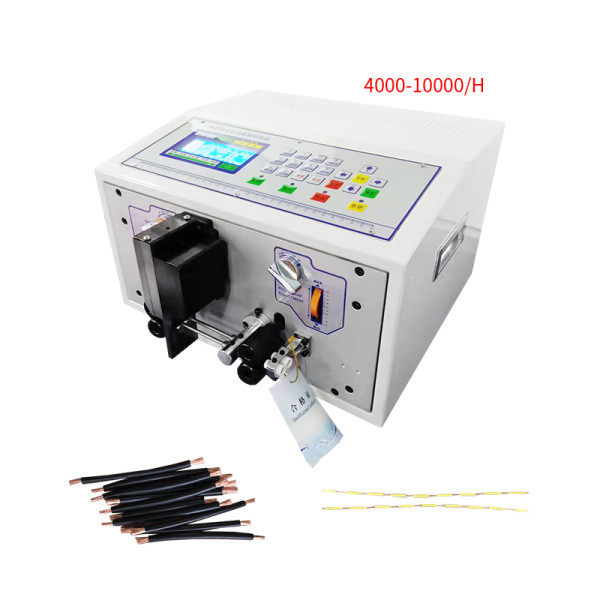

TR-508-SDB/N Double wire short wire stripping machine

Brand Name: Turing

Weight: 27KG

Power supply: AC220/110V/60HZ/50HZ

Motor power: rated 200W

Display mode: Chinese and English switching LCD display

Appearance size: 420X390X260

Cutting length: 1～10000mm

Stripping length: thread head 0-30mm, thread tail: 0-15mm

Cutting tolerance: ± (0.002xL)mm

Middle stripping and cutting: thirteen places

Cutting wire core section: Double wire 0.1～2.5mm2 Single wire 0.1～4mm2

Maximum diameter of conduit: ￠6

Suitable for stripping wire: PVC, Teflon, glass wire

Blade material: hard tungsten steel

Stripping speed: (L=100MM/hour) 5000-10000

Drive mode: four-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)

Wire stripping speed: cutter speed and wire feeding speed can be adjusted separately: 0 is the slowest, 9 is the fastest

Suitable for stripping wire: PVC, Teflon, glass wire

Please send me your wire to test machine if possible .

Packing : each packed in master carton , if you need wooden case , please discuss when order
