TR-13Z Fully Automatic High-speed Double-head Insert Plastic Shell Tin Dipping Machine

TR-13Z Fully Automatic High-speed Double-head Insert Plastic Shell Tin Dipping Machine

TR-13Z Fully Automatic High-speed Double-head Insert Plastic Shell Tin Dipping Machine
TR-13Z Fully Automatic High-speed Double-head Insert Plastic Shell Tin Dipping MachineTR-13Z Fully Automatic High-speed Double-head Insert Plastic Shell Tin Dipping MachineTR-13Z Fully Automatic High-speed Double-head Insert Plastic Shell Tin Dipping MachineTR-13Z Fully Automatic High-speed Double-head Insert Plastic Shell Tin Dipping MachineTR-13Z Fully Automatic High-speed Double-head Insert Plastic Shell Tin Dipping Machine
CategoriesPlastic Shell Terminal Crimping Machine
BrandTuring
ModelTR-13Z
PowerAC220V/50HZ,
ApplicationDouble end Terminal Machine
FeatureStable Performance
Warranty1year
ControlServo and Step motor
ContactLily 0086-13715588365
FOB portshenzhen ,guangzhou ,zhongshan
Terms of PaymentWestern Union, MoneyGram, T/T
Download
Update TimeJul 13,2024
Detail Information
TR-13Z Fully Automatic High-speed Double-head Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
TR-13Z Fully Automatic High-speed Double-head Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Insert Plastic Shell Tin Dipping Machine
Device name:Fully automatic double-head pressing end shell inserting machine
Length x Width x Height:2183x2350x1800mm
Equipment Weight:About 1100KG
Working Pressure:0.5-0.7Mpa, the air source is filtered and dry
Operating Voltage:AC220V 50HZ
Rated Current:45A
Control:Inovance bus
Servo/Stepper Motor:Inovance Servo Motor/Raise Stepper Motor
Screw/rail: TPI screw/silver guide rail
Sensor: Hua Yifeng
Cyndiner:Genuine brands such as SMC AirTAC

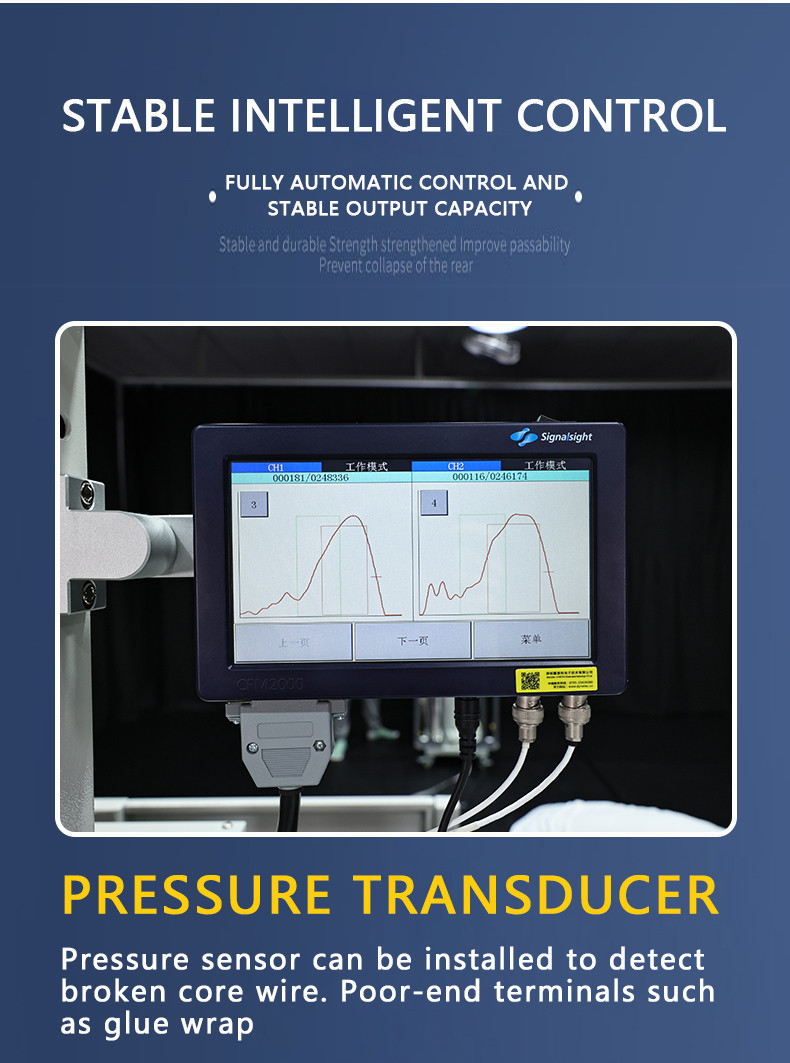

Detection (optional):Vision (Tongyue), Pressure (Tyco)
Efficiency:300~375 times/hour (efficiency fluctuates with the number and length of spelling,
                while wearing multiple plastic shells and working continuously for 24 hours)
Cut length:45-1000mm (length can be customized)
Front end:Stripping 0-5mm, punching terminals, piercing the shell
Rear end:Stripping 0-10mm, twisting 2-8mm, tinning, terminal punching, casing penetration
Type of wire: AWG28#-18# electronic wire, cable
Shell type:1.25\1.5\2.0\2.5\3.96 etc.
Shell processing P number:2P-5P (cable) 2P-20P (electronic wire)
Insert Plastic Shell Tin Dipping Machine
