TR-17 Fully Automatic Multi-core Sheathed Wire Dipping Tin Machine

TR-17 Fully Automatic Multi-core Sheathed Wire Dipping Tin Machine

TR-17 Fully Automatic Multi-core Sheathed Wire Dipping Tin Machine
TR-17 Fully Automatic Multi-core Sheathed Wire Dipping Tin MachineTR-17 Fully Automatic Multi-core Sheathed Wire Dipping Tin MachineTR-17 Fully Automatic Multi-core Sheathed Wire Dipping Tin MachineTR-17 Fully Automatic Multi-core Sheathed Wire Dipping Tin MachineTR-17 Fully Automatic Multi-core Sheathed Wire Dipping Tin Machine
CategoriesDipping Tin Terminal Crimping Machine
BrandTuring
ModelTR-17
PowerAC220V/50HZ,
ApplicationTin Dipping Machine
FeatureStable Performance
Warranty1year
ControlServo and Step motor
ContactLily 0086-13715588365
FOB portshenzhen ,guangzhou ,zhongshan
Terms of PaymentWestern Union, MoneyGram, T/T
Download
Update TimeJun 24,2024
Detail Information

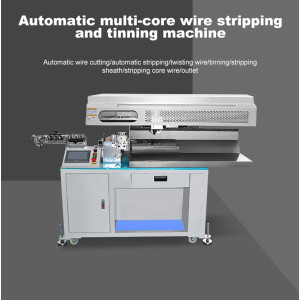

TR-17 Fully Automatic Multi-core Sheathed Wire Dipping Tin Machine
imensions:2150x1750x1650 mm
Weight: 700 kg
Special requirements can be customized, sample line testing isRemark:required
Display method: 10.1 inch true color touch screen
Wire Type:The outer diameter of sheathed wire, multi-core sheathed wire,etc. is 12mm Below, 8 cores and below (confirm according to thewire)
Stripping range: Contains sheathed wires below eight cores
Cut length: 150mm-99999.99mm
Cutting Tolerance: Within 0.002xL (L=cutting length)
Front stripping: the outer sheath is completely strippedPeeling inside30-55 mm,and the inner core wire is 1-10 mmand outside
After stripping: 25-55 mm of outer sheath iscompletely removed, and 1-10 mm ofinner core wire
Tool material:Precision steel
Wire delivery method: Roller feeding
Drive mode: Sheathed wire 700pcs/H depends on the length of the wire
Drive mode:Servo drive
Function:Automatic double-head cuttingstripping sheath core wirewire management,single-head crimping terminal andsingle-head twisted wire tinning
Model: TR-17 Fully automatic multi-core sheathed wire tinning machine
Tin Dipping Machine
Tin Dipping Machine
Tin Dipping Machine
Tin Dipping Machine
Tin Dipping Machine
Tin Dipping Machine
Dipping Tin Machine
Dipping Tin Machine
