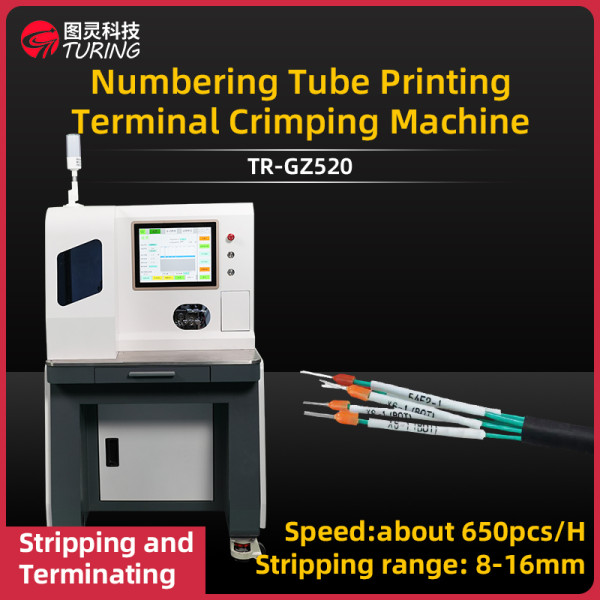

TR-GZ520 Semi-Auto Tube Type Number Tube Terminal Crimping Machine

TR-GZ520 Semi-Auto Tube Type Number Tube Terminal Crimping Machine

TR-GZ520  Semi-Auto Tube Type Number Tube Terminal Crimping Machine
TR-GZ520  Semi-Auto Tube Type Number Tube Terminal Crimping MachineTR-GZ520  Semi-Auto Tube Type Number Tube Terminal Crimping MachineTR-GZ520  Semi-Auto Tube Type Number Tube Terminal Crimping MachineTR-GZ520  Semi-Auto Tube Type Number Tube Terminal Crimping MachineTR-GZ520  Semi-Auto Tube Type Number Tube Terminal Crimping Machine
CategoriesInserting Tube Terminal Crimping Machine
BrandTuring
ModelTR-GZ520
PowerAC220V/50HZ,
ApplicationNumber Tube Terminal Machine
FeatureStable Performance
Warranty1year
ContactLily 0086-13715588365
FOB portshenzhen ,guangzhou ,zhongshan
Terms of PaymentWestern Union, MoneyGram, T/T
Download
Update TimeJul 13,2024
Detail Information
TR-GZ520  Semi-Auto Tube Type Number Tube Terminal Crimping Machine
Control method:Man-machine interface, electronic touch control, pneumaticcontrol
Operating mode:Auto-triggered run and manualoperation
Wires pecification:Suitable for BVR line 0.5, 075, 1.0, 1.5, 2.5, 4.0 square
Peeling length:Stripping length range 8-16mm
Terminal specification:Terminal insulator length within 7.5mm, conductor lengthwithin 12mm
Crimp shape:Quadrilateral crimp (imitation square)
Replacement product:Manually replace relevant fixtures and adjust the vibrating plateelectric memory stripping length and stripping skin depth.t takes about 3 minutes to replace a set of terminal fixtures
Test items:Terminal presence detection, safety door opening detection on the right side
Power supply:External input power AC220V /50H (single phase) 10A: internal External power supply DC24V
Air source:0.5-0.8Mpa (please use a stable clean and dry air source, connectThe air intake source should be kept not lower than 0.5Mpa)
Dimensions:L730*W760*H1400mm(excluding protrusions)
Weight:100KG
Number tube length:10-32mm
Sheath Peeling length:275mm(confirm with incoming samples)
Speed:About 650PCS/H
TR-GZ520  Semi-Auto Tube Type Number Tube Terminal Crimping Machine
Number Tube Terminal Machine
Number Tube Terminal Machine
Number Tube Terminal Machine
Number Tube Terminal Machine
Number Tube Terminal Machine
Number Tube Terminal Machine
Number Tube Terminal Machine
Number Tube Terminal Machine
