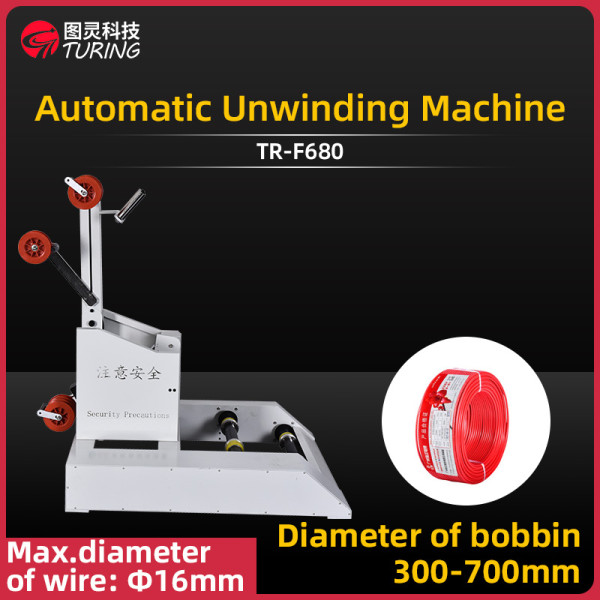

TR-F680 Automatic Unwinding Machine
| Categories | Pay-off rack |
|---|---|
| Brand | Turing |
| Model | TR-F680 |
| Max. wire diameter | 16mm |
| load-bearing | 150kg |
| speed | 70M/min |
| Function | Automatic wire release |
| FOB port | shenzhen ,guangzhou ,zhongshan |
| Terms of Payment | Western Union, MoneyGram, T/T |
| Update Time | Apr 25,2025 |
Detail Information
TR-F680 Automatic Unwinding Machine
Equipment name:TR-F680 Automatic Unwinding Machine
Max. wire diameter:16mm
bobbin range:300-700mm
power of release:0.55kW domestic geared motor with vector inverter,inverter controlof unwinding speed
Maximumunwind speed:70 m/min
Bobbin width:Maximum 680mm
Bobbin Lifting:Manual loading and unloading of bobbins
load-bearing:150kg
Main frame material:Made of high quality carbon steel, sheet metal bending and welding
Induction method:Frequency converter with multiple speeds, automatically adiustedaccording to the height of the wire storage wheel pull up,withoutmanualinterention.
