TR-850C Automatic Tape Winding Machine

Categories	Full tape wrapping machine
Brand	Turing
Model	TR-850C
Power	AC220V/50HZ,
operating mode	Touch Screen
power supply	AC220V/DC24V
Warranty	1year
Wire diameter	3-10MM
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Jun 17,2025

Contact Now

Favorites

Detail Information

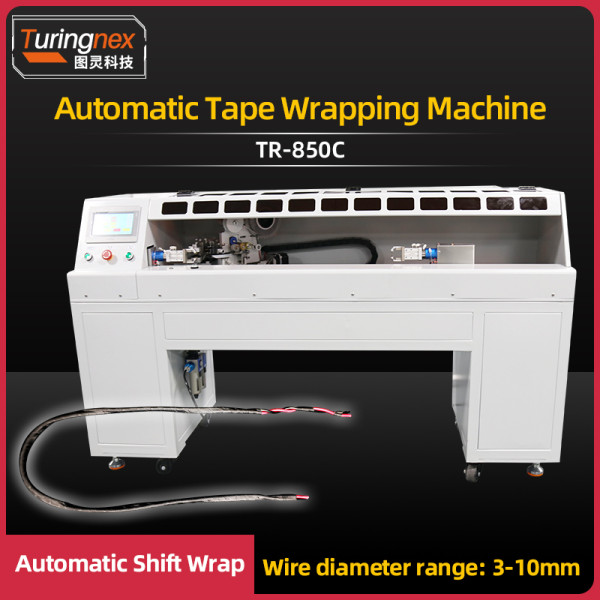

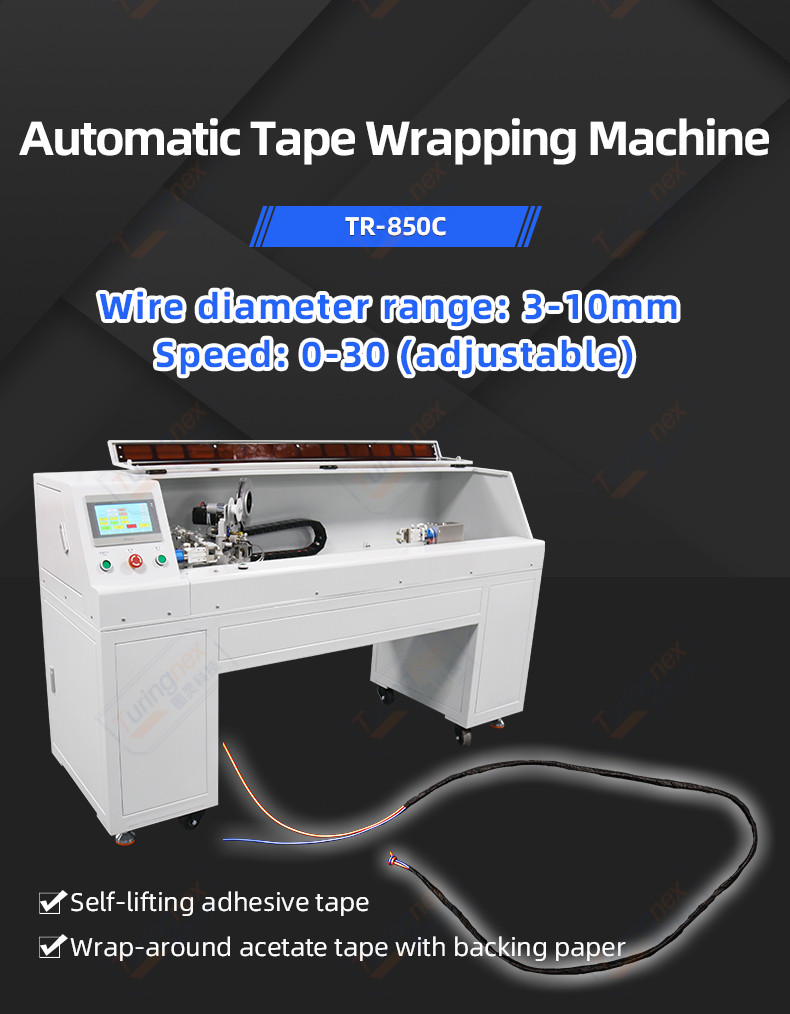

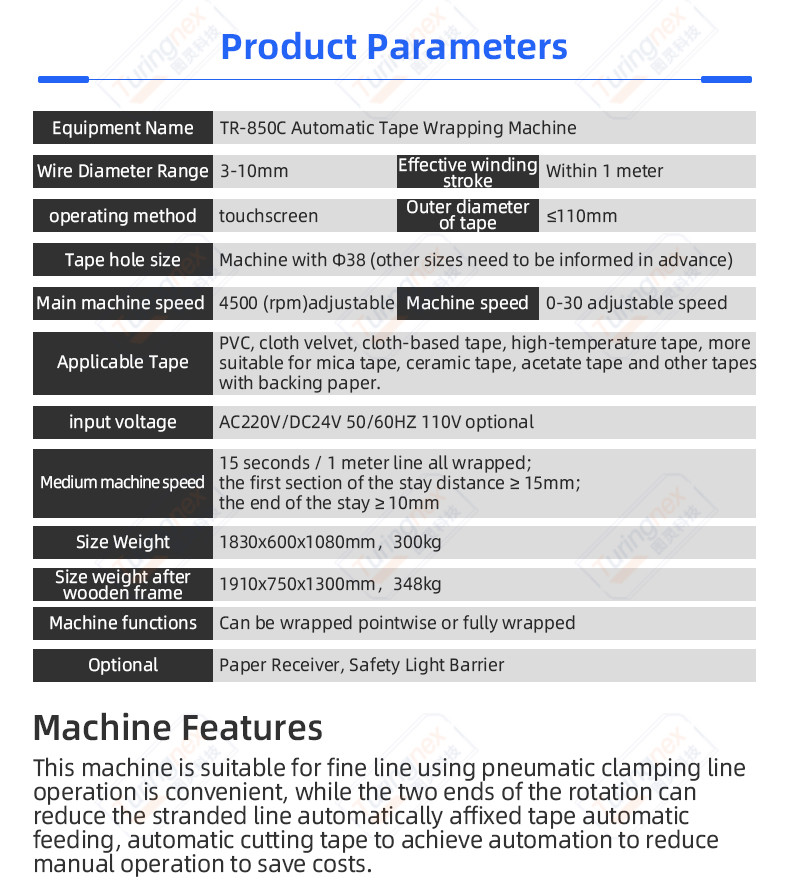

TR-850C Automatic Tape Winding Machine

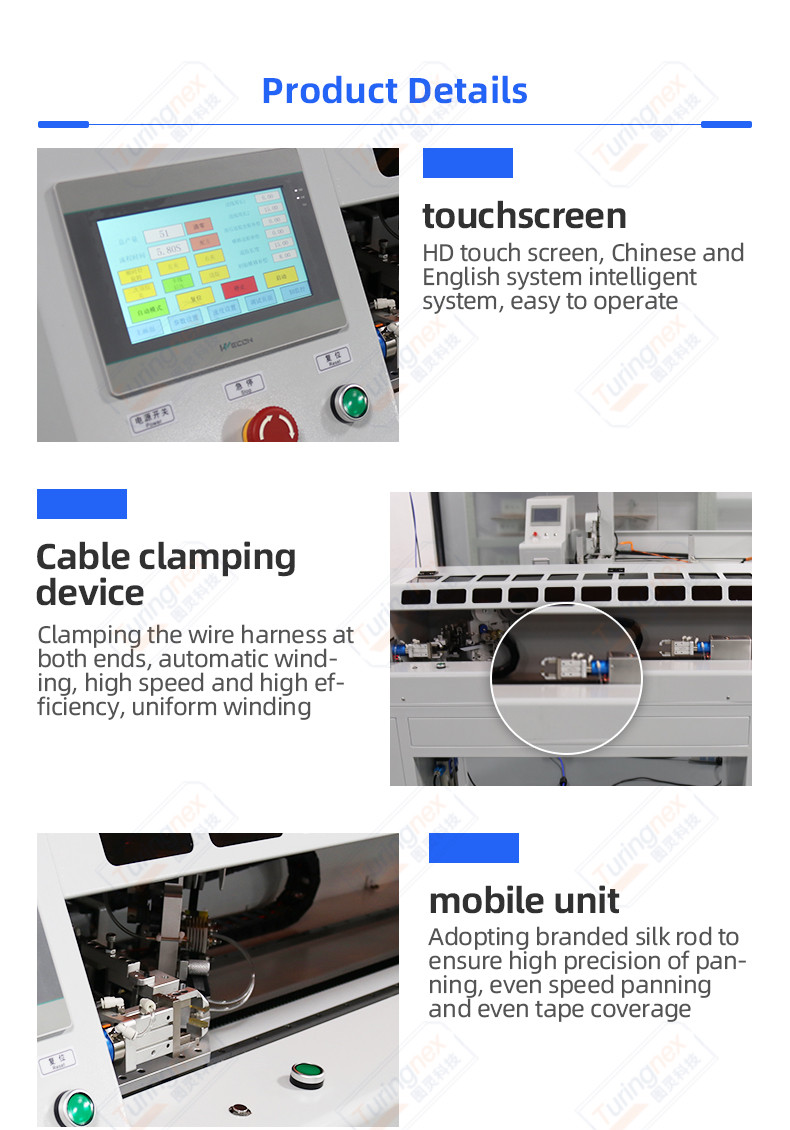

Operation: Touch Screen

Effective Winding Stroke: within 1 meter

Applicable Wire Diameter: 3-10mm

Hole Size of Tape: Ф38 (other sizes Ф32, Ф76 ....) (need to be informed in advance)

Host speed (rpm): 4500 rpm adjustable

Applicable tape: PVC, cloth velvet, cloth-based tape, high-temperature tape, more suitable for mica tape, ceramic tape, acetate tape and other adhesive tape with backing paper.

Voltage: AC220V/DC24V 50/60HZ 110V Optional:

Outer diameter of the tape: ≤ 110

Medium speed of the machine: 15 seconds / 1 meter line Full winding The first section of the stay ≥ 15mm The end of the stay ≥ 10mm

Speed of the machine: 0-30 adjustable

Length, width, and height: 1830 * 600 * 1080mm

Gross weight of the machine: 300KG

Dimensions and weight of the wooden frame: 1910 * 75.0 * 1300mm, 348KG. 1300mm, 348KG

machine can be optional: plus paper collector, plus safety grating

machine features: this machine is suitable for fine line pneumatic clamping line operation is convenient, while the two rotating can reduce the stranded line automatically paste tape automatic feeding, automatic cutting tape to achieve automation to reduce manual operation to save costs.

Machine function: can point winding can full winding
