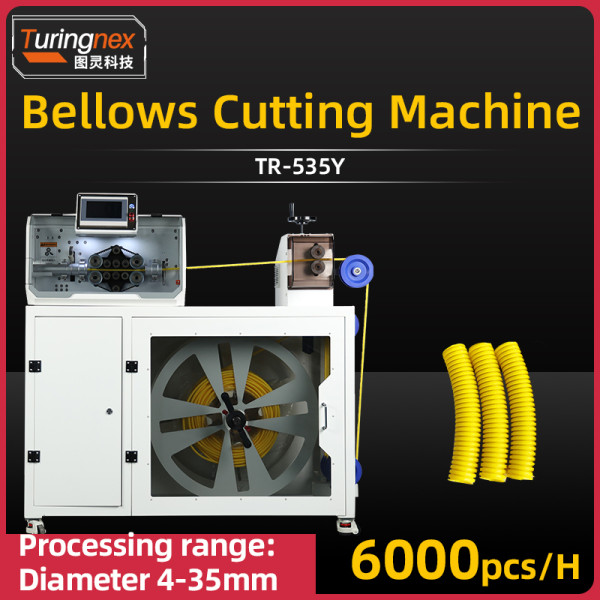

TR-535Y Bellows Cutting Machine

Control mode: 7 inch HMI

Function: corrugated pipe/PVC pipe/heat-shrinkable pipe, and other thin-walled pipe cut off at fixed length

Processing range: 4-35mm

Power supply: AC220V50/60Hz; optional 110V 50/60Hz

Cutting length: 1mm-999999.99mm

Cutting error: 0.005*L or less (L=cutting length)

Cutting speed: 6000pcs/H

Dimensions and weight: 1550*650*1400mm, 260kg

Air source: no need for air source

Feeding method: belt feeding, no embossing and no scratches on the pipe

Driving method: 10-wheel drive; optional servo motor
