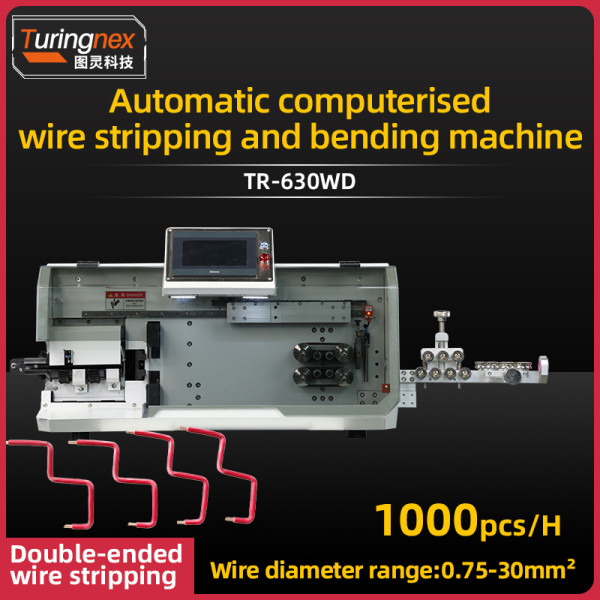

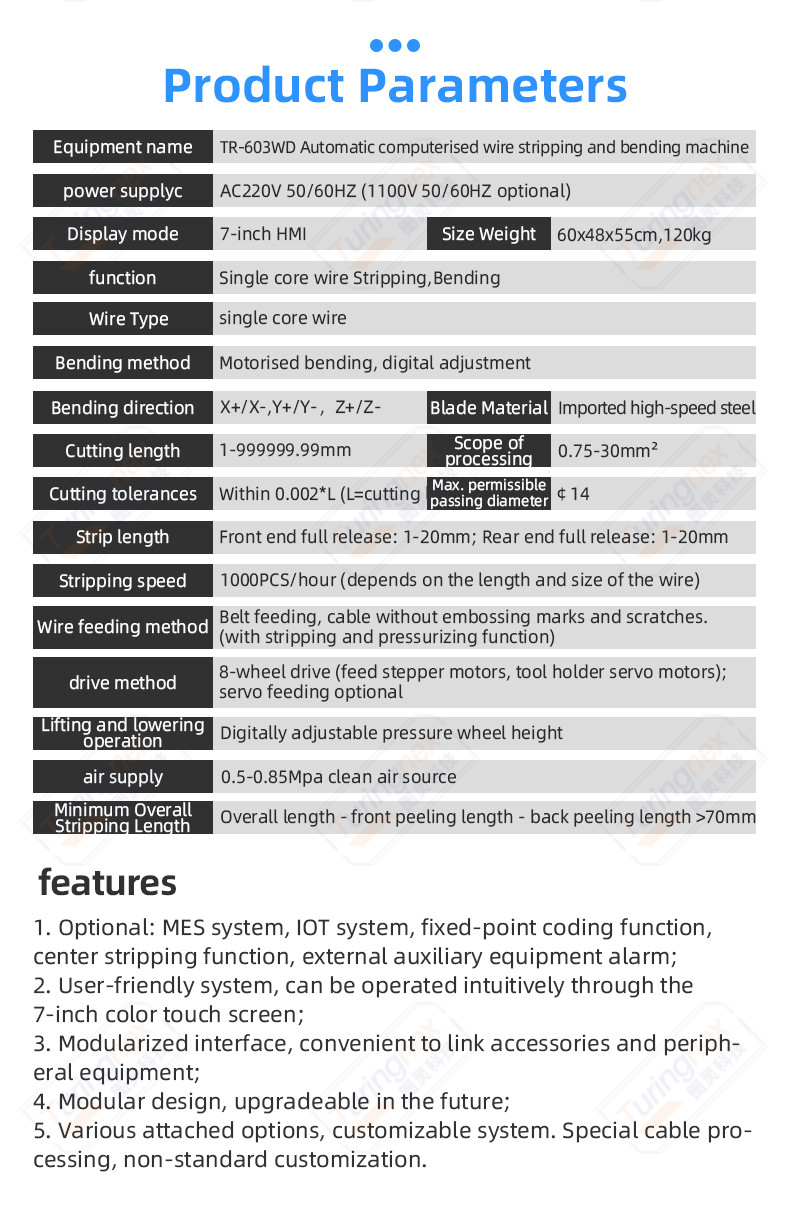

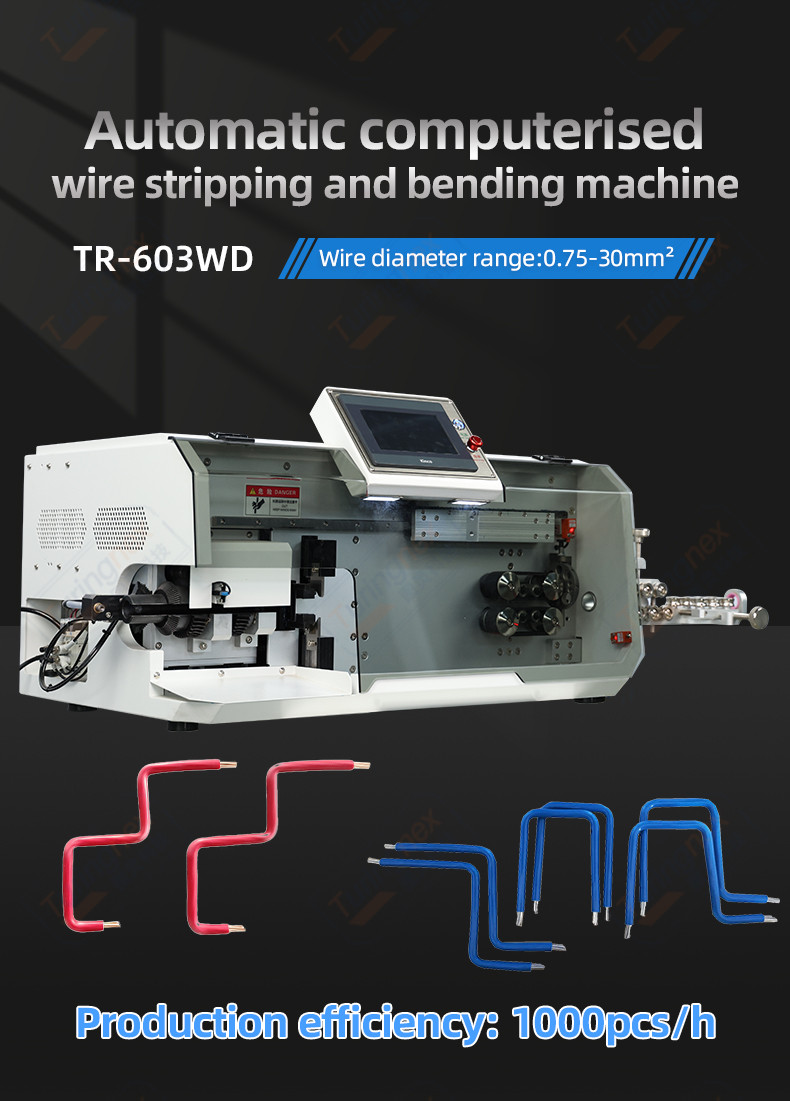

TR-603WD Automatic computerised wire stripping and bending machine

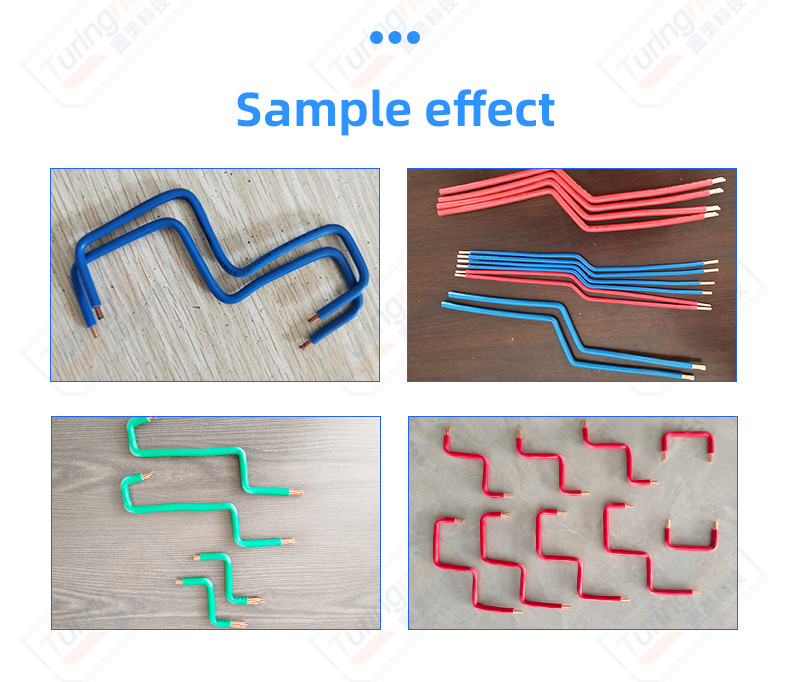

Function: single-core wire Stripping, bending

Bending method: electric bending, digital adjustment

Bending direction: X+/X-,Y+/Y-, Z+/Z-

Conductor type: single-core wire

Processing range: 0.75 -- 30 sq. ft.

Cutting length: 1mm-999999.99mm

Minimum total length of stripping: Total length - front end stripping length - rear end stripping length > 70mm Cutting tolerance 0.002*L or less (L = cutting length) Stripping length Front end fully stripped: 1- 20mm Back end fully stripped: 1- 20mm Maximum diameter allowed to pass through Φ14 70mm

Cutting tolerance: within 0.002*L (L=cutting length)

Stripping length: front end full stripping: 1- 20mm; rear end full stripping: 1-20mm

Allowable through the maximum diameter: Φ14

Knife material: high-quality imported high-speed steel

Productivity (times/hour): 1000 PCS/hour (according to the length of the line, the size of the decision)

Driving mode: 8-wheel drive (feed stepping motors, knife holder); optional servo motor Servo motor); Optional servo Feeding

Feeding method: belt feeding, no embossing and scratching of cables. (Front end with stripping and pressurising function)

Lifting operation mode: digital adjustment of the height of the pressure wheel

Power supply: AC220V 50/60Hz; optional 110V 50/60Hz

Air source: 0.5Mpa-0.85Mpa clean air source

Dimensions (length*width*height): 60*48*55cm

Net Weight: 120kg

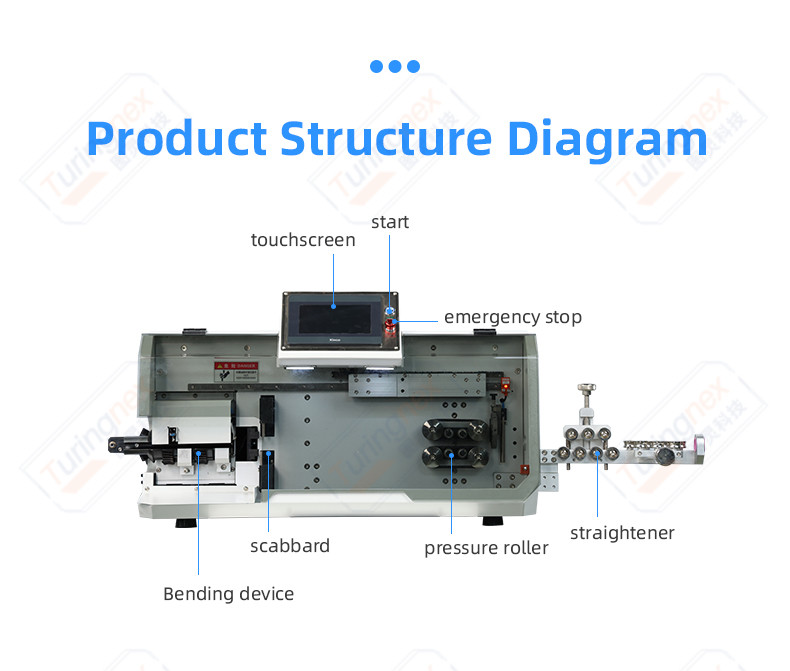

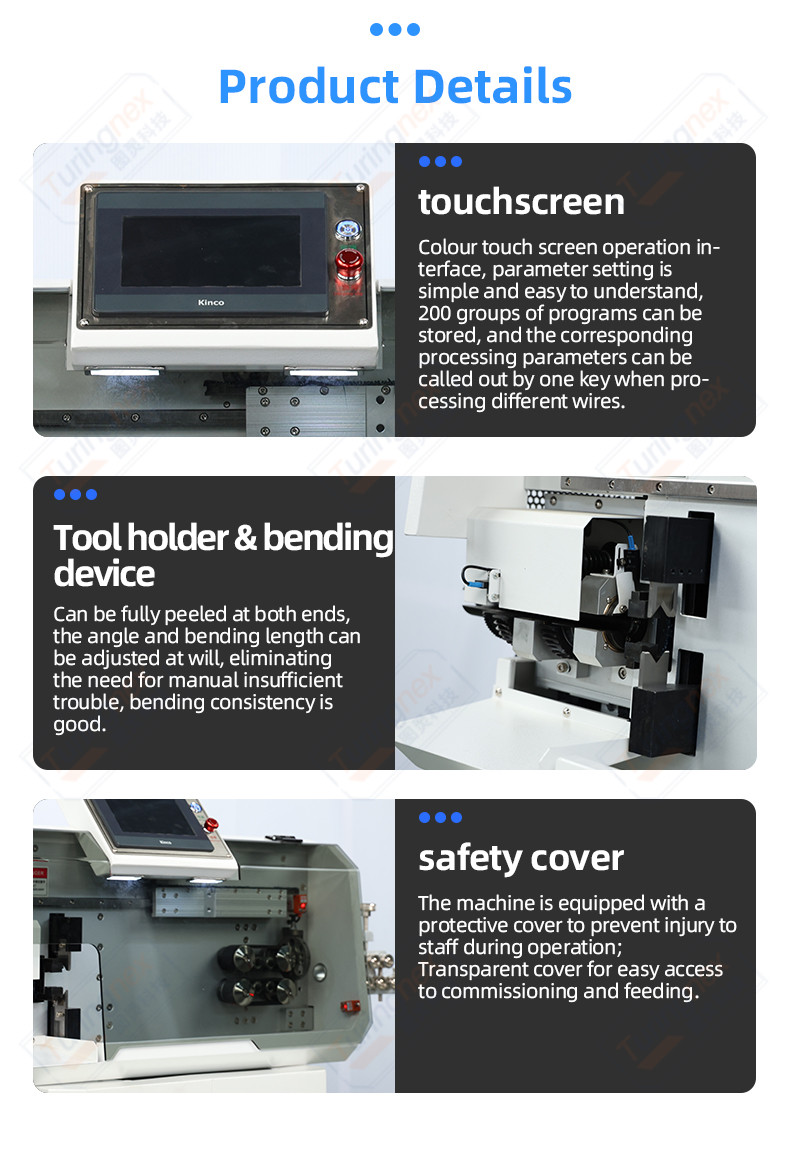

1. Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm; 2. User-friendly system, can be operated intuitively through the 7-inch color touch screen; 3. Modularized interface, convenient to link accessories and peripheral equipment; 4. Modular design, upgradeable in the future; 5. Various attached options, customizable system. Special cable processing, non-standard customization.
