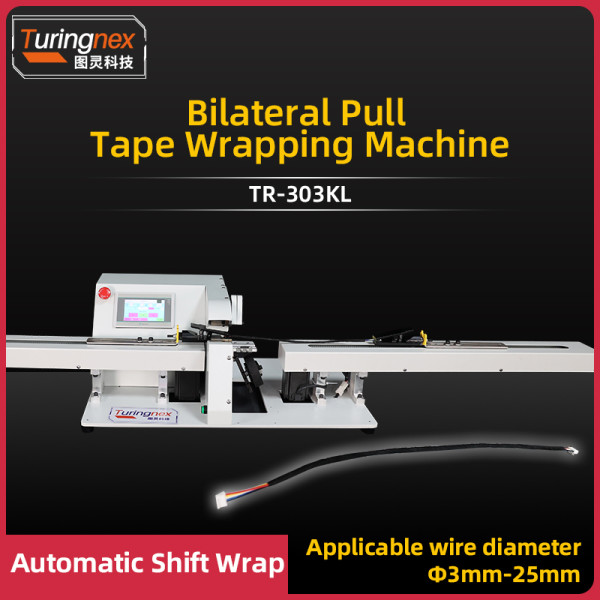

TR-303KL Bilateral Pull Tape Wrapping Machine

Categories	Full tape wrapping machine
Brand	Turing
Model	TR-303KL
Power	AC220V/50HZ,
operating mode	Touch Screen
power supply	AC220V/DC24V
Warranty	1year
Wire diameter	Ф3mm-25mm
FOB port	shenzhen ,guangzhou ,zhongshan
Terms of Payment	Western Union, MoneyGram, T/T
Download
Update Time	Jun 27,2025

Contact Now

Favorites

Detail Information

TR-303KL Bilateral Pull Tape Wrapping Machine

Operation mode: touch screen

Winding method: spiral winding

Applicable wire diameter: Ф3mm-25mm

Tape outer diameter: maximum 110mm

Tape width: 9-30mm

Winding length: 1050mm (longer and shorter can be customized)

Packing tape density: can be adjusted by the machine set parameters.

Hole size of the tape: machine with Ф38 (other sizes Ф32, Ф76 ....) (need to inform in advance)

Rotation speed of main machine (rpm): 200-1400 rpm adjustable

Applicable tape: PVC, cloth velvet, cloth-based tape, high temperature tape, mica tape, ceramic tape, etc.

Voltage: AC220V/DC24V 50/60HZ 110V optional

Machine size: 2780mm*380mm*280mm Net weight:48KG

Machine function:

can be full winding, interval winding, point winding, overlap area adjustable. Requirements for the winding length of the tape, winding requirements stay position accuracy can be: ± 1mm.

Trial for: collection of harness, multi-branch, tape winding winding part of the winding length setting, multi-segment requires accurate stay position of the harness.
