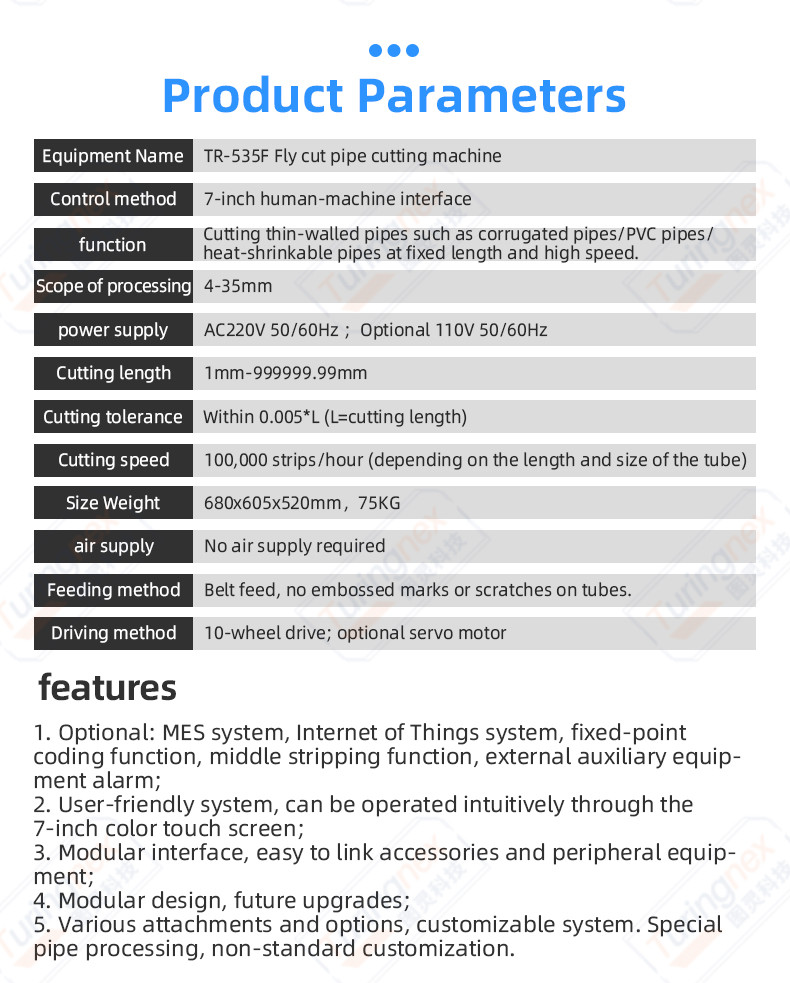

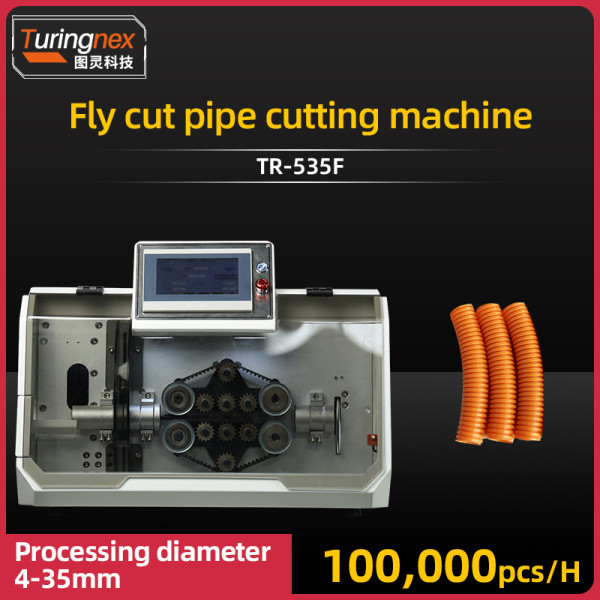

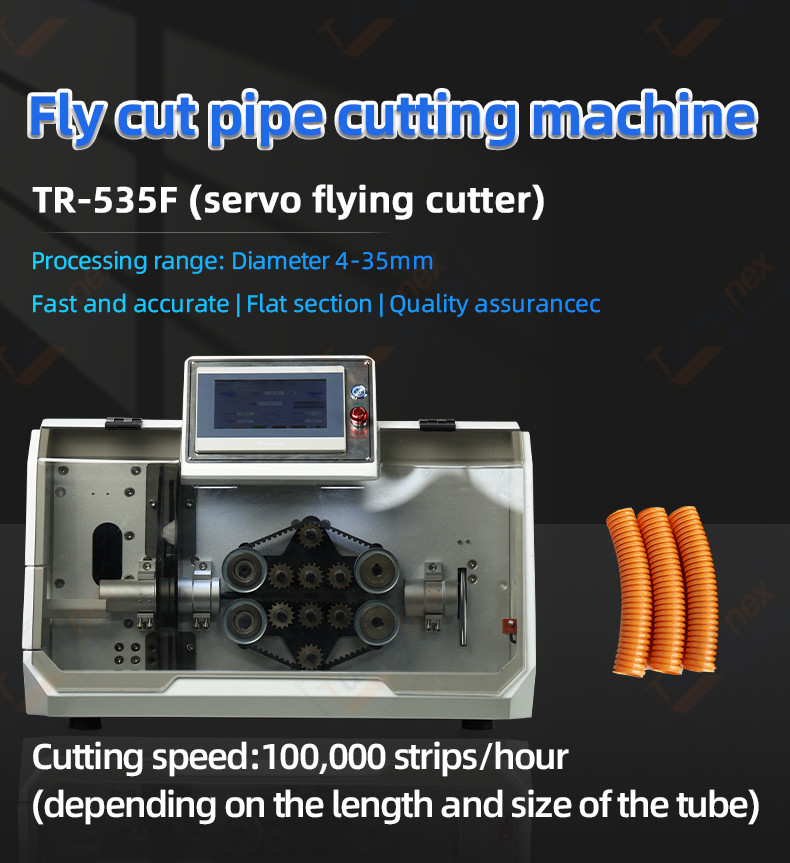

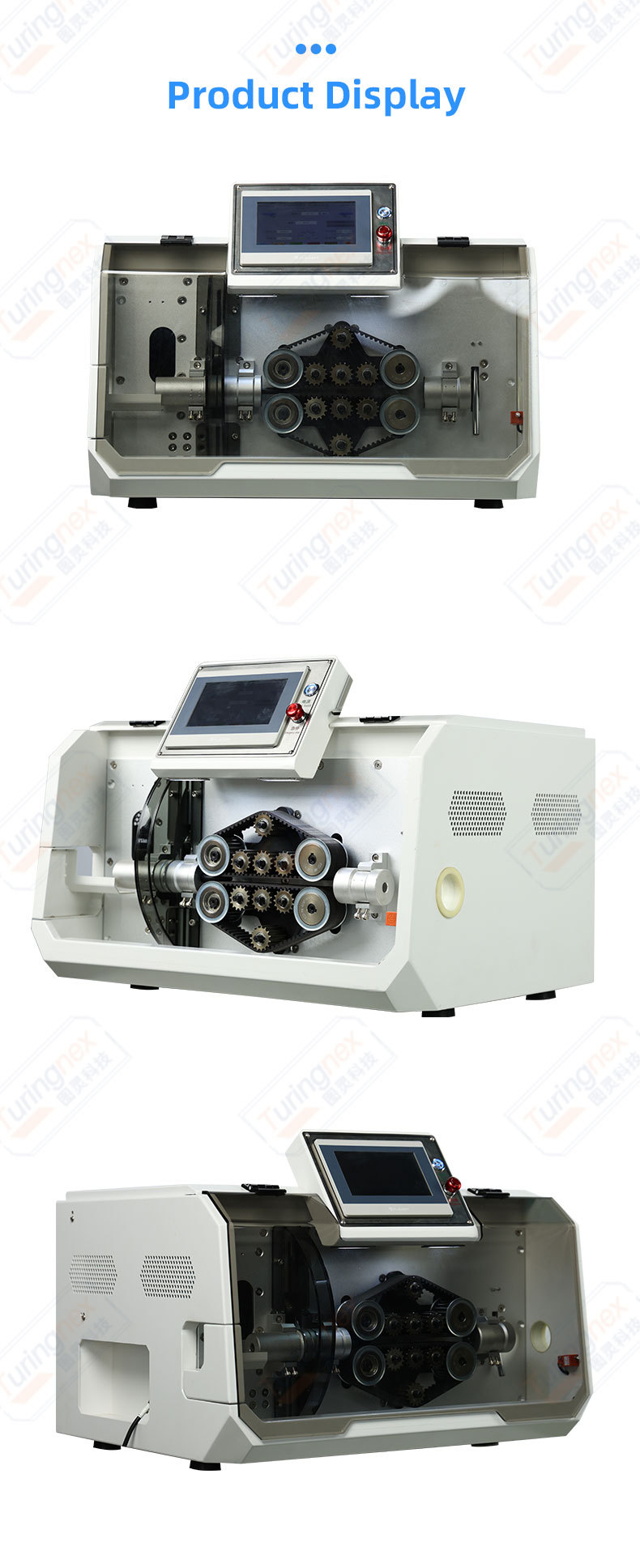

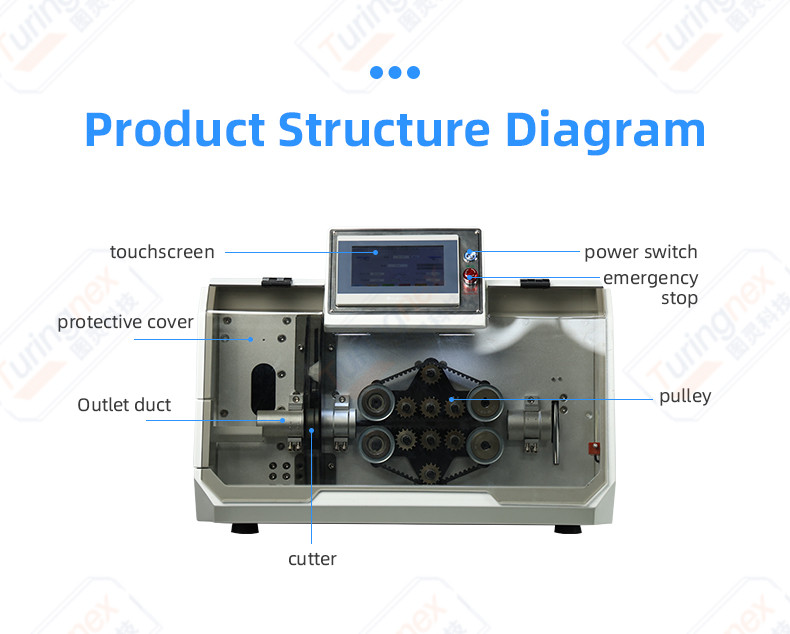

TR-535F Fly cut pipe cutting machine

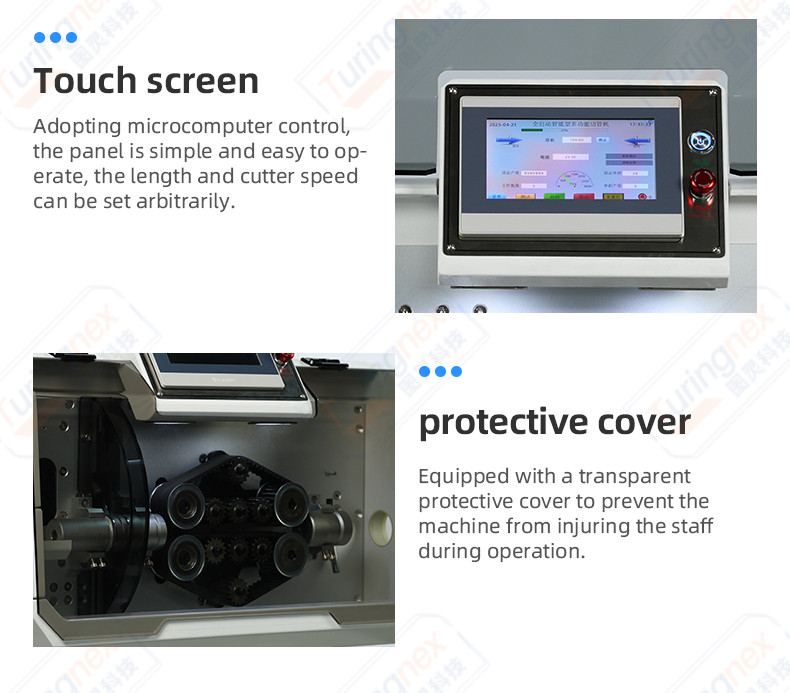

Display: 7-inch man-machine interface

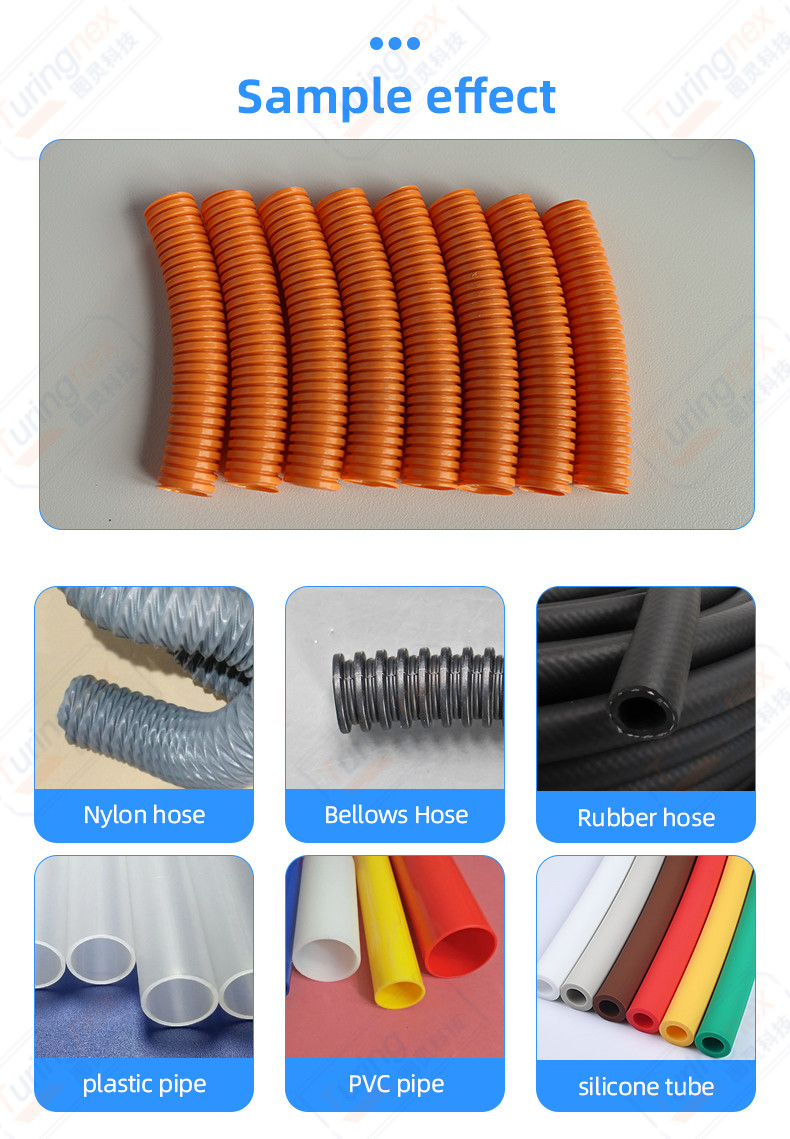

Functions: corrugated pipe/PVC pipe/heat-shrinkable pipe, and other thin-walled pipe cutting at fixed length; high-speed fly cutting;

Processing range: 4-35mm

Cutting length: 1mm-99,999,999.99mm

Cutting tolerance: 0.005*L or less (L=cutting length)

Productivity (times/hour): 100,000 strips/hour (according to the length of the pipe, the size depends on)

Driving mode : 10-wheel drive; optional servo motor

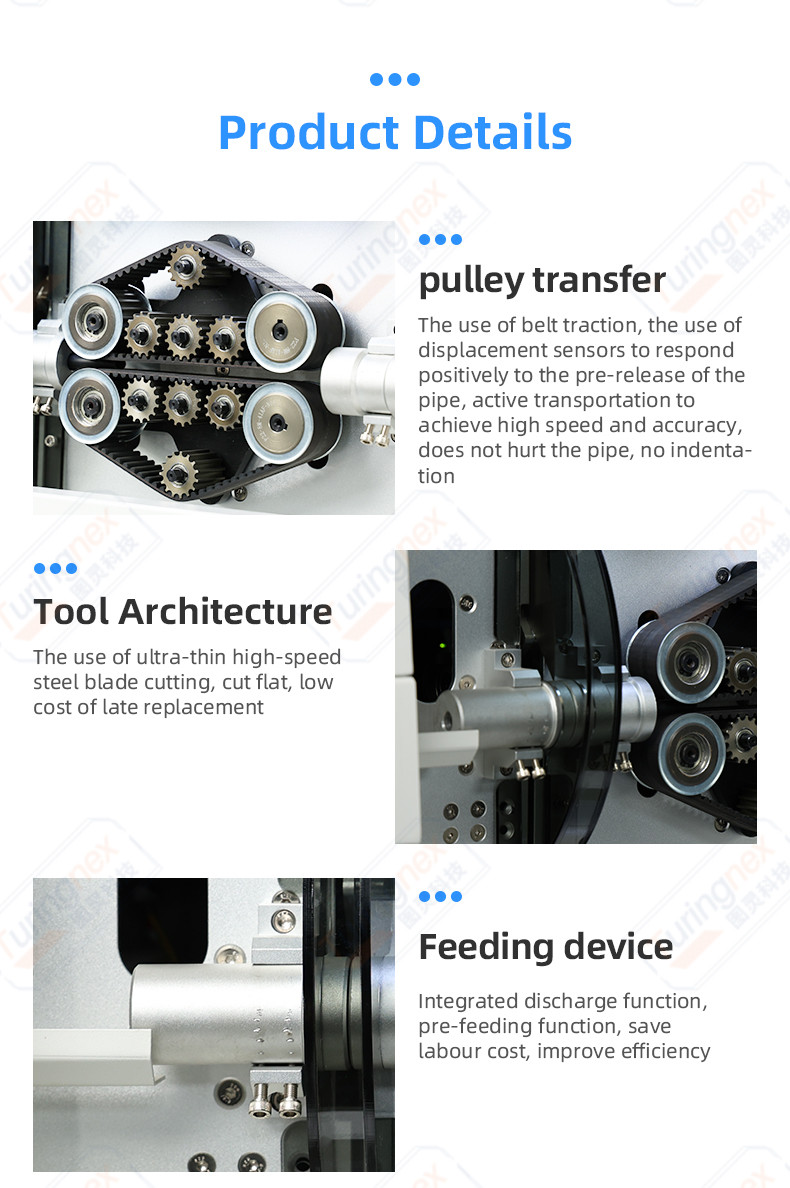

Feeding method: belt feeding, no embossing and scratching of the tube.

Lifting operation mode: digital adjustment of the height of the press wheel

Power supply: AC220V 50/60Hz; optional 110V 50/60Hz

Air source: no air source required

Dimensions (L*W*H): 680*605*520mm

Net weight: 75kg
