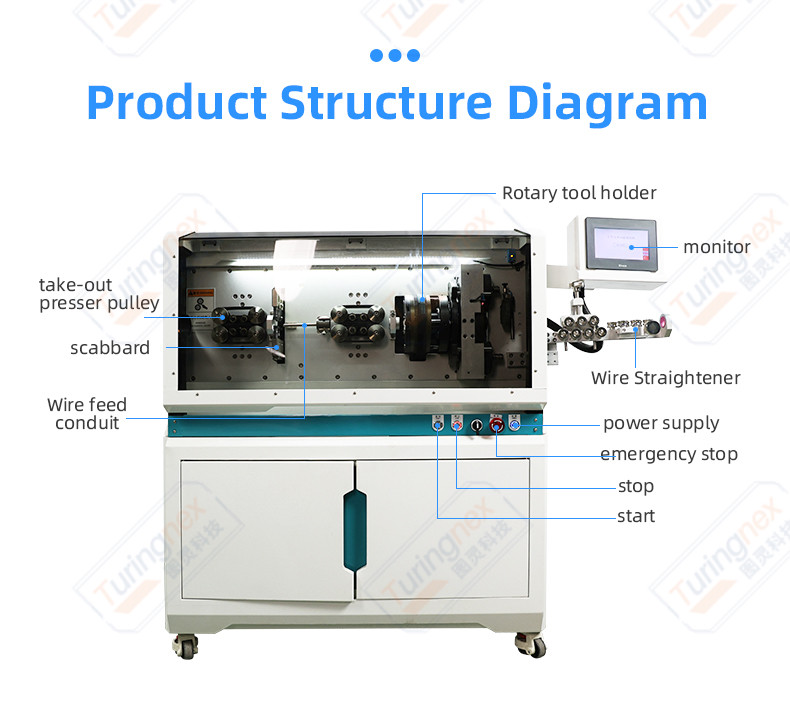

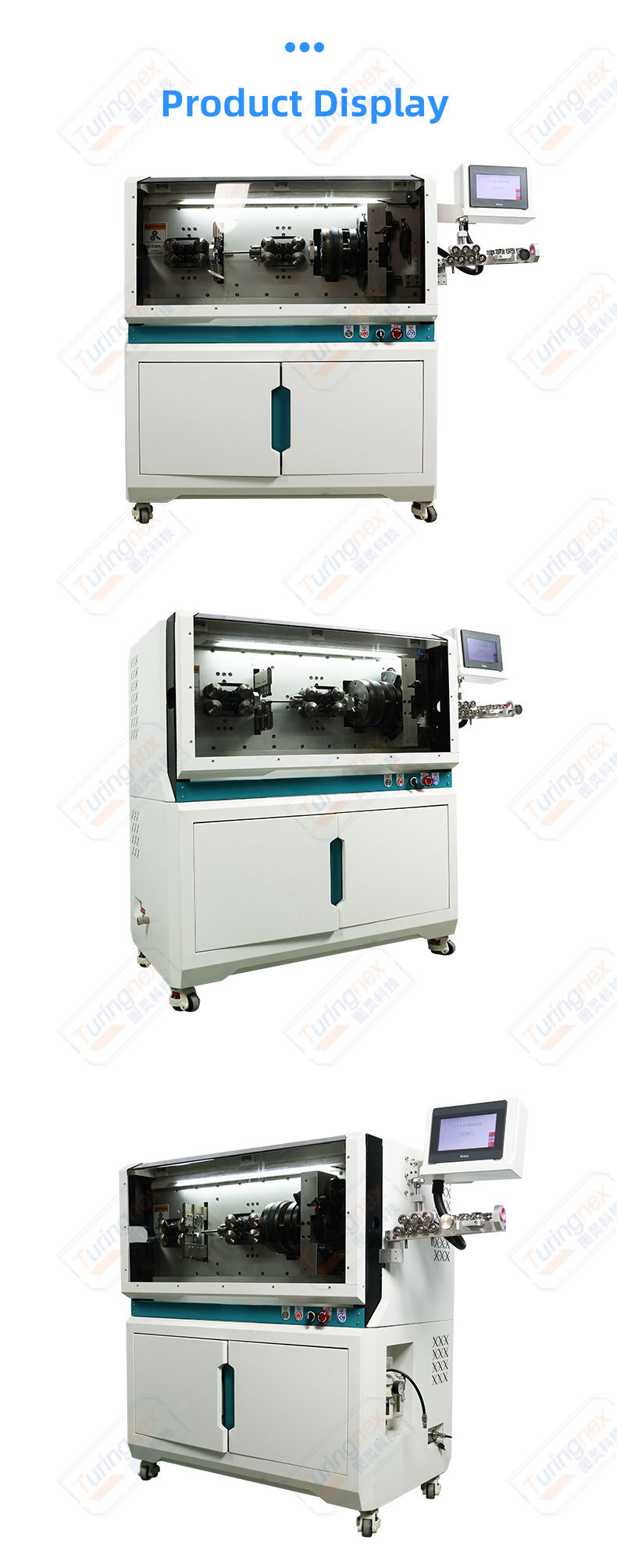

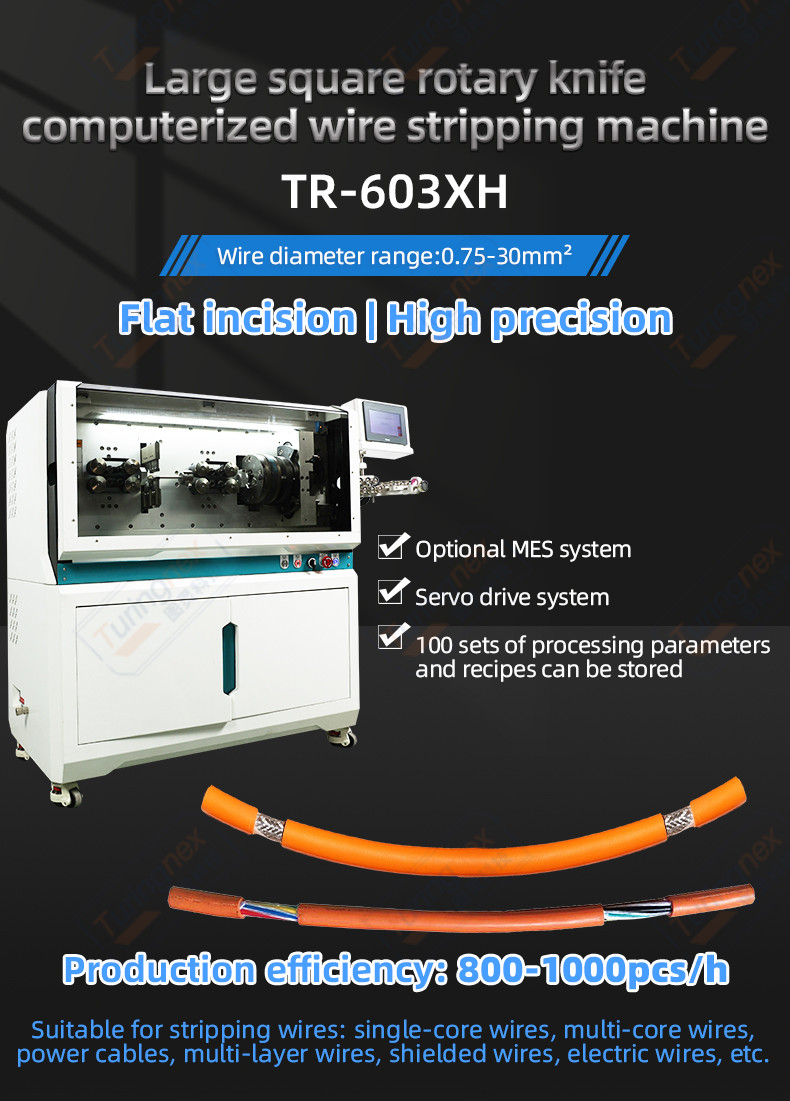

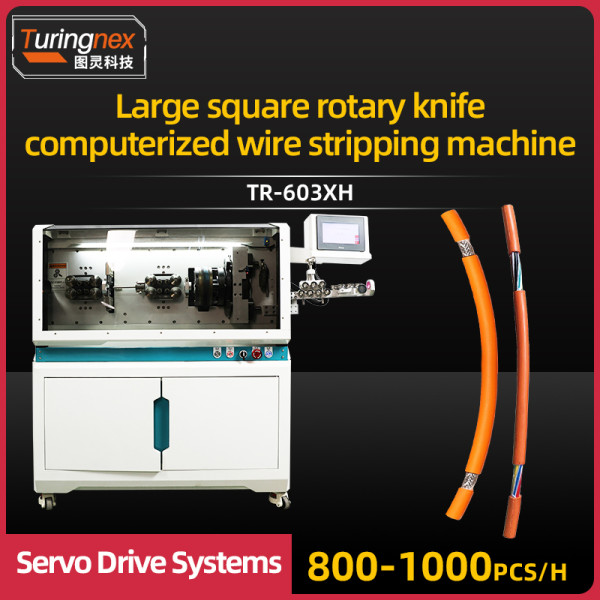

TR-603XH Large square rotary knife computerized wire stripping machine

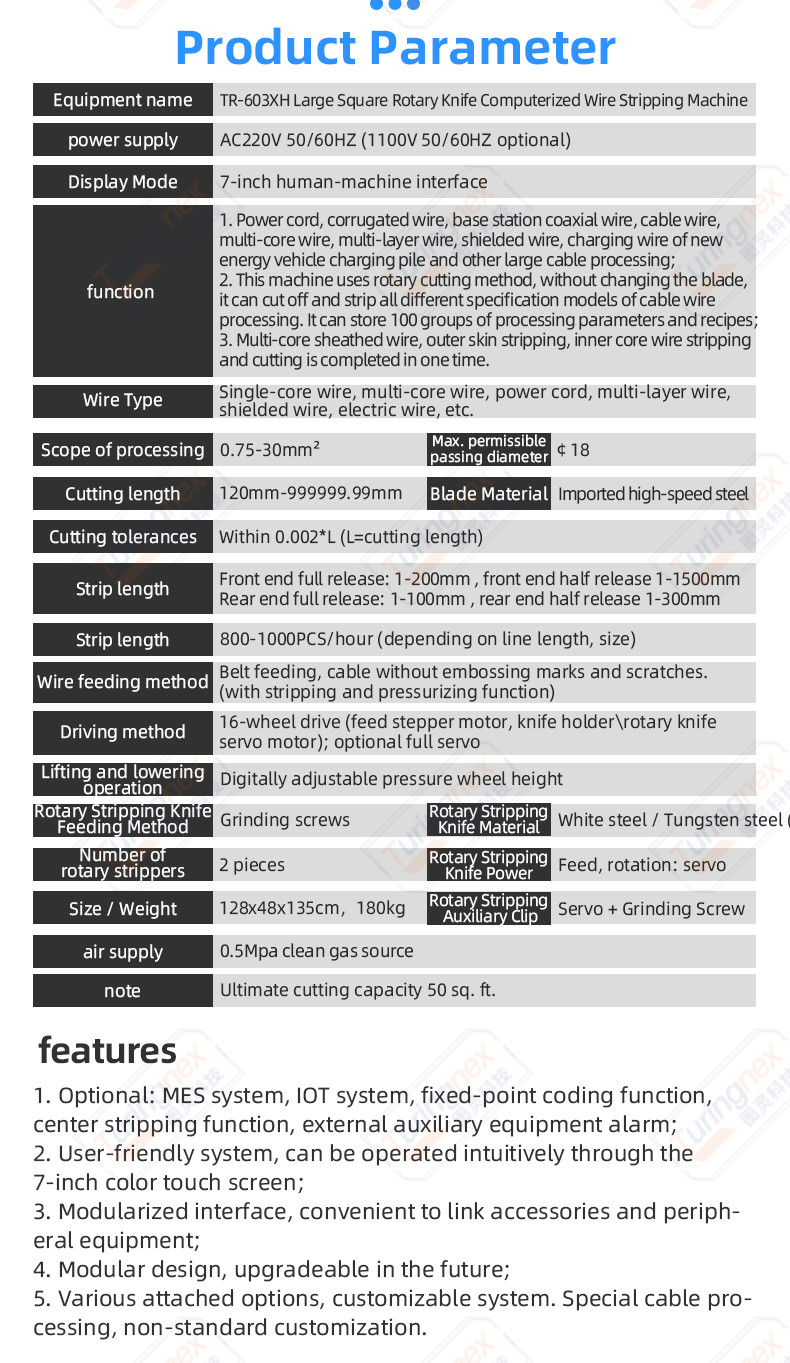

Size and weight: 128x48x135cm, 180kg

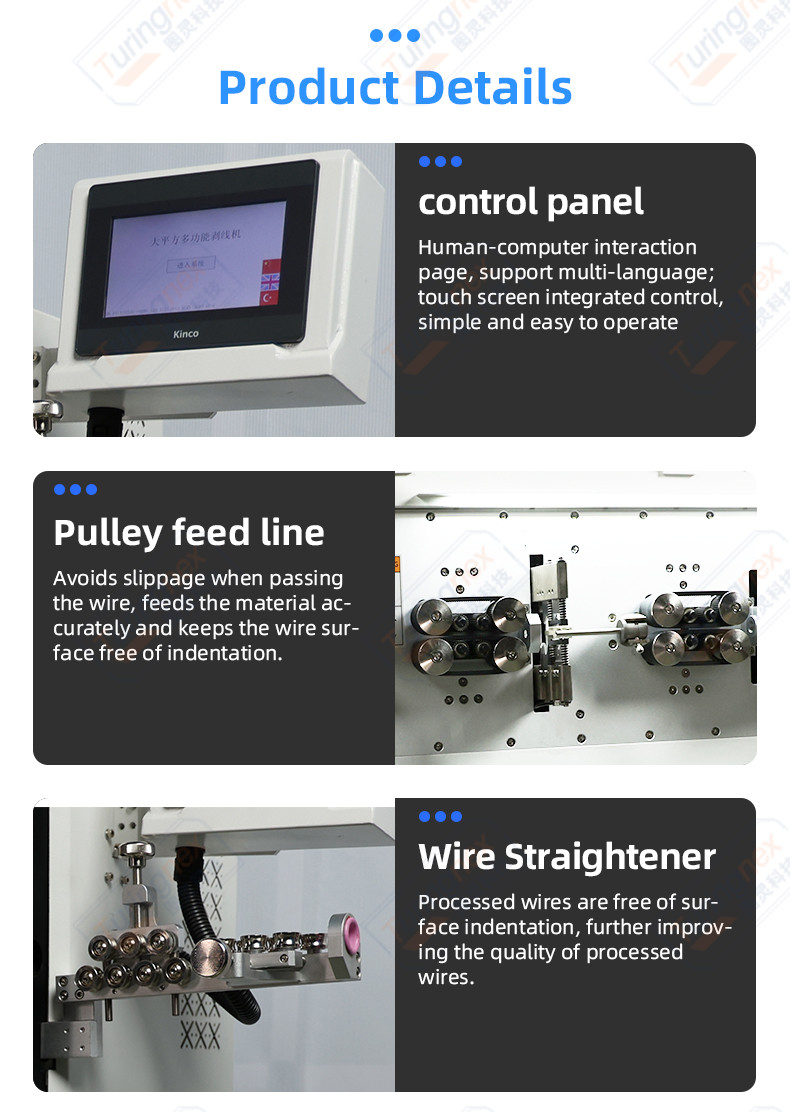

Display: 7-inch human-machine interface

Functions:

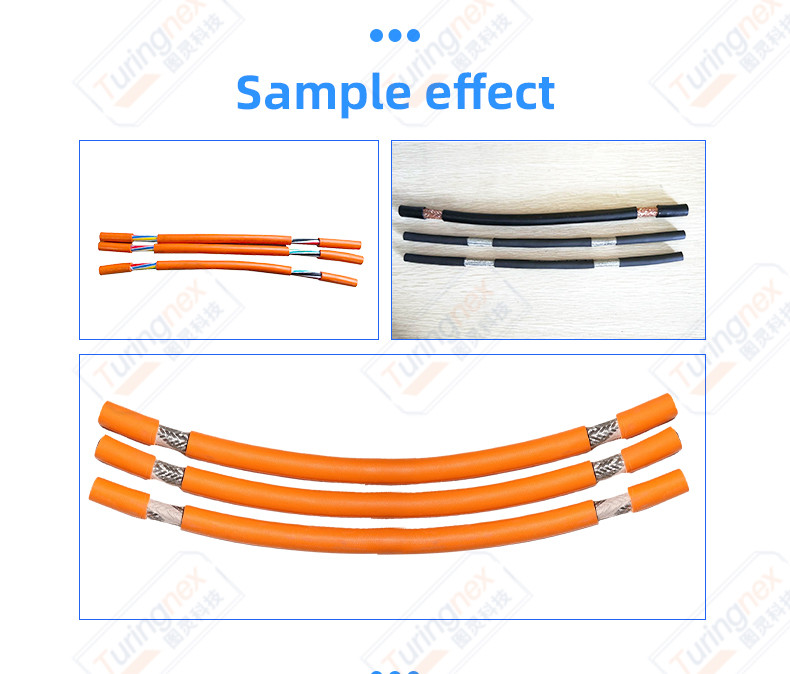

1, power line, corrugated line, base station coaxial line, cable line, multi-core line, multi-layer line, shielded line, charging line of new energy vehicle charging piles and other large cable processing;

2, this machine uses the rotary cutting method, without changing the blades, you can cut and strip the cable line of all the different specifications of all models. The machine can cut and strip all different sizes and models of cable wires without changing blades. It can store 100 groups of processing parameters and recipes;

3. Multi-core sheathed wire, outer skin stripping, inner core wire stripping and cutting in one go.

Wire type: single-core wire, multi-core wire, power cord, multi-layer wire, shielded wire, electric wire, etc.

Processing range: 0.75-30mm²

Cutting length: 120mm-99,99999.99mm

Cutting tolerance: 0.002*L or less (L=cutting length)

Stripping length: front-end full-stripping: 1-200mm, front-end half-stripping 1-1500mm

 Rear-end full-stripping: 1-100mm , rear-end half-stripping 1-300mm. Rear end half off 1-300mm

Stripping speed: 800-1000PCS/hour (according to the length and size of the wire)

Feeding method: Belt feeding, no embossing and scratching on the cable. (with stripping pressurization function)

Driving mode: 16 wheels drive (feeding stepping motor, knife frame\rotary knife servo motor); optional full servo

Lifting operation mode: digital adjustment of the pressure wheel height

Allowed to pass through the maximum diameter: ¢ 18

Blade material: imported high-speed steel

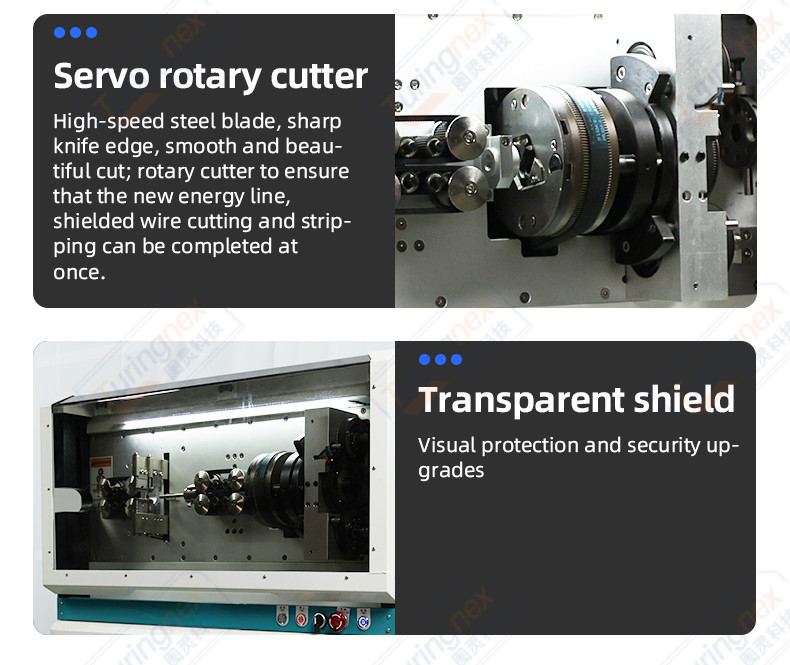

Rotary stripping knife feeding mode: grinding screw

Rotary stripping knife number: 2 pieces

Rotary stripping knife material: white steel / tungsten steel (optional)

Rotary stripping knife power: feeding: servo. Rotation: servo

Stripping Auxiliary Clamp: servo + grinding screw

Remarks: Limit Cutting Capacity 50 sq.ft.
