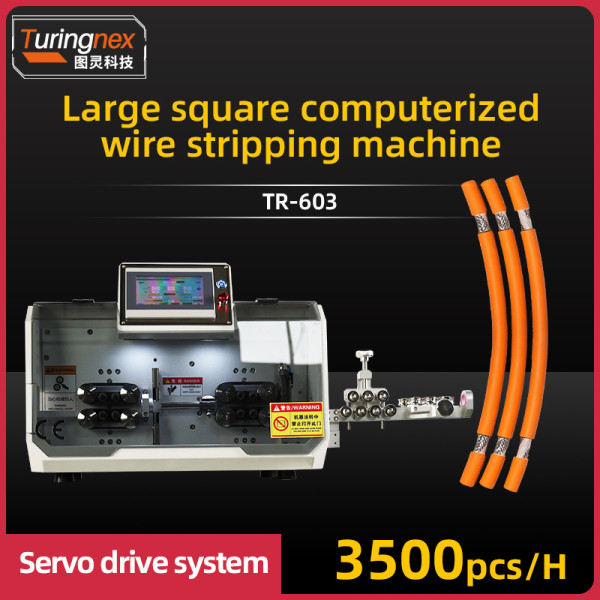

TR-603 Large Square Computerized Wire Stripping Machine
TR-603 Large Square Computerized Wire Stripping Machine
| Categories | Computer Wire Stripping Machine |
|---|---|
| Brand | Turing |
| Model | TR-603 |
| Power | AC220/110V/60HZ/50HZ |
| Name | wire cutting machine |
| Cutting length | 1-999999.99mm |
| Scope of processing | 0.75-30mm² |
| Contact | CoCo +86 18666170785 |
| FOB port | shenzhen ,guangzhou ,zhongshan |
| Terms of Payment | Western Union, MoneyGram, T/T |
| Download |  |
| Update Time | Jun 11,2025 |
Detail Information

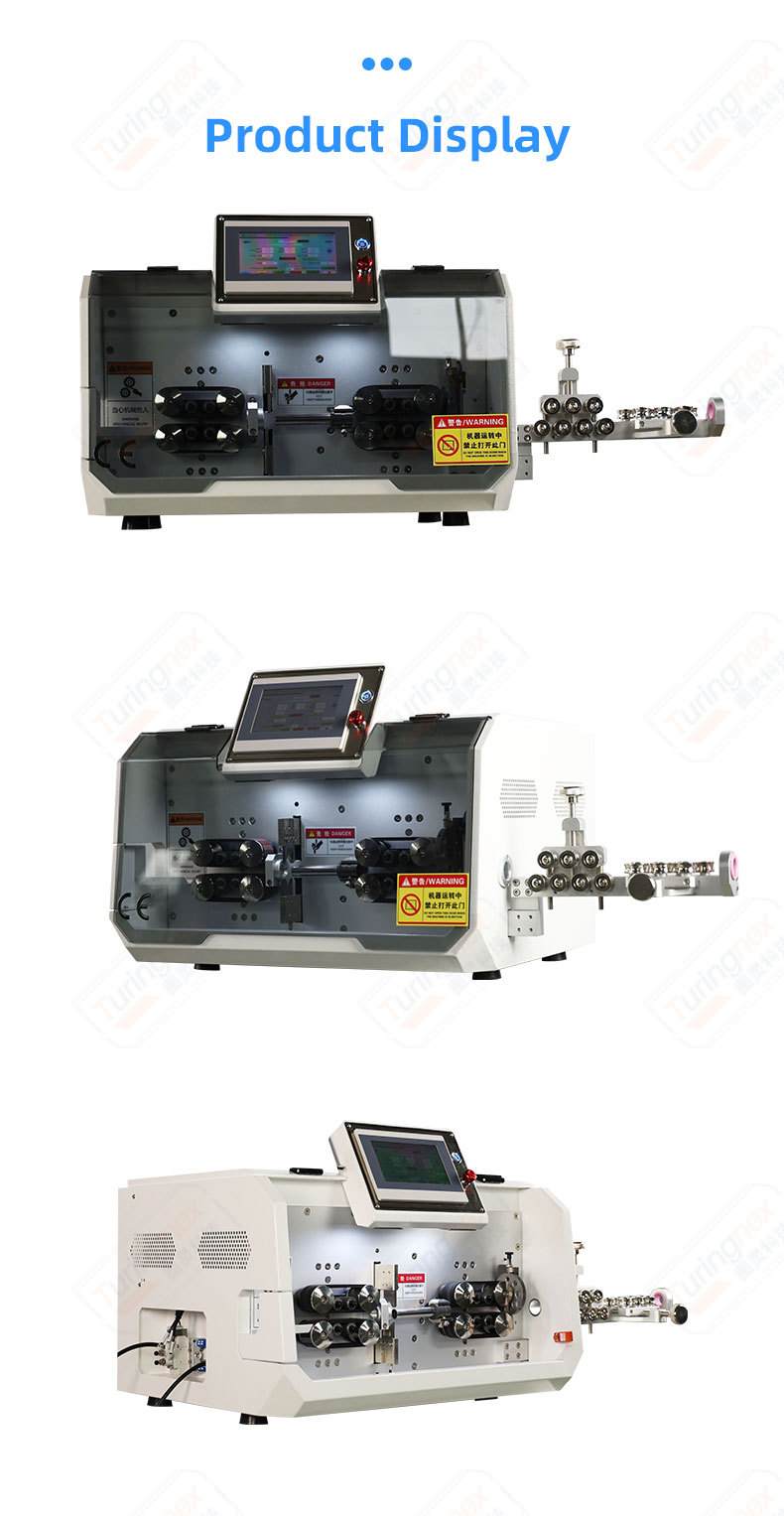

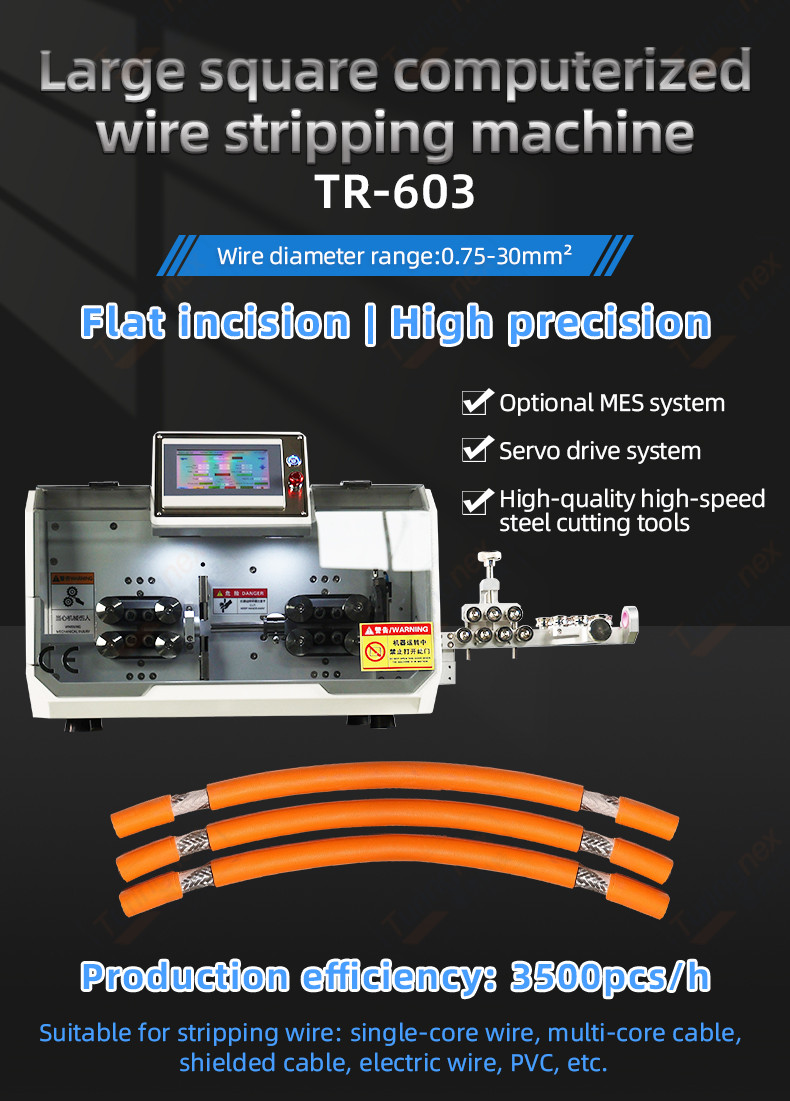

TR-603 Large Square Computerized Wire Stripping Machine

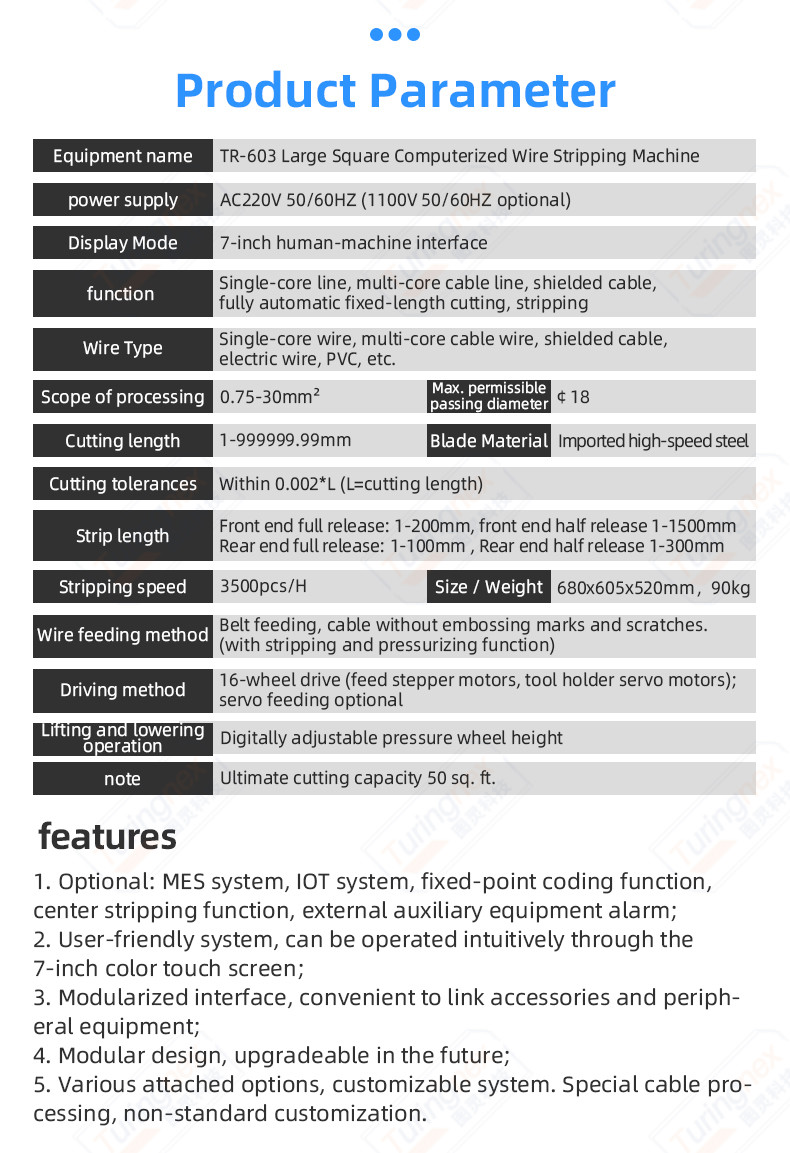

power supply：AC220V 50/60HZ(1100V50/60HZ optional)
Display Mode：7-inch human-machine interface
function：Single-core line, multi-core cable line, shielded cable,fully automatic fixed-length cutting, stripping

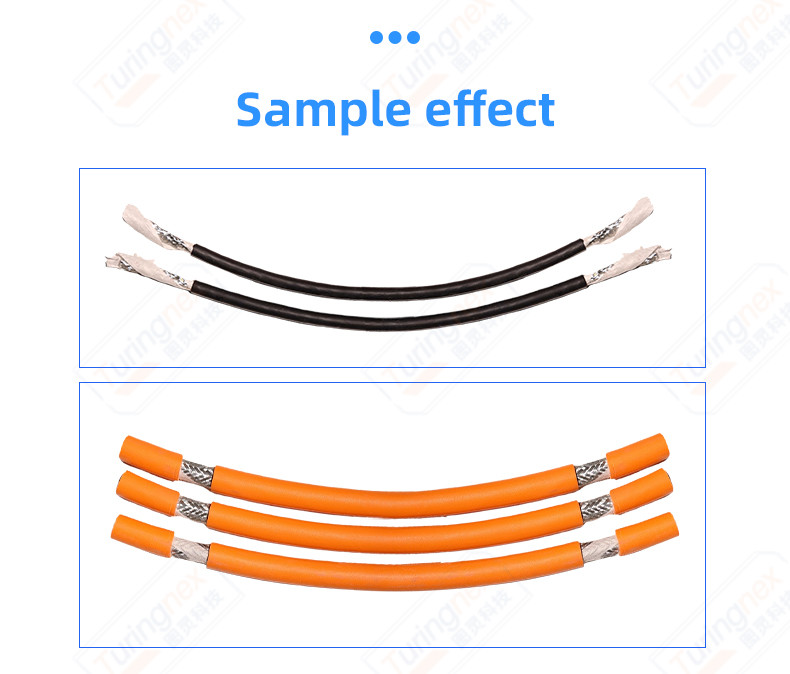

Wire Type：Single-core wire,multi-core cable wire, shielded cableelectric wire, PvC, etc.
Scope of processing：0.75-30mm²
Cutting length：1-999999.99mm
Cutting tolerances：Within 0.002*L(L=cutting length)
Strip length：Front end full release:1-200mm, front end halfrelease 1-1500mm
Rear end full release:1-100mm , Rear end halfrelease 1-300mm
Stripping speed：3500pcs/H

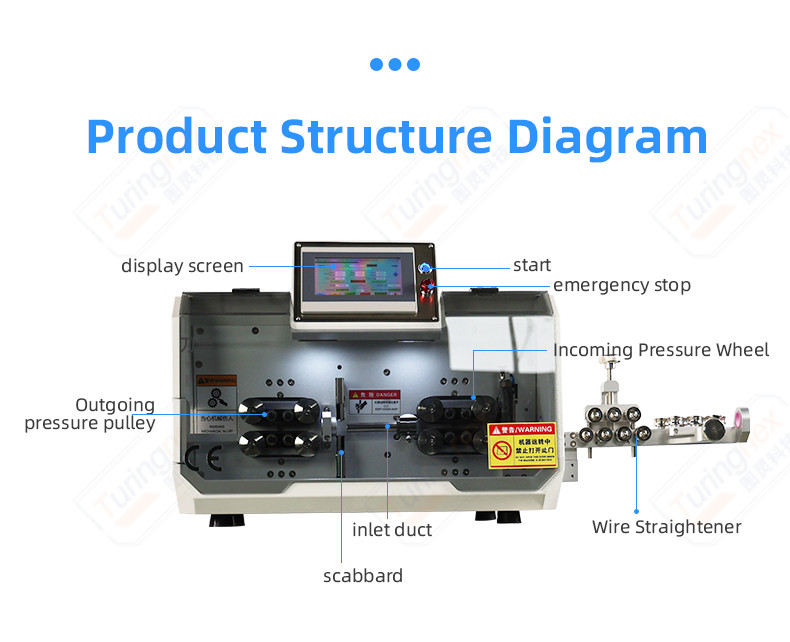

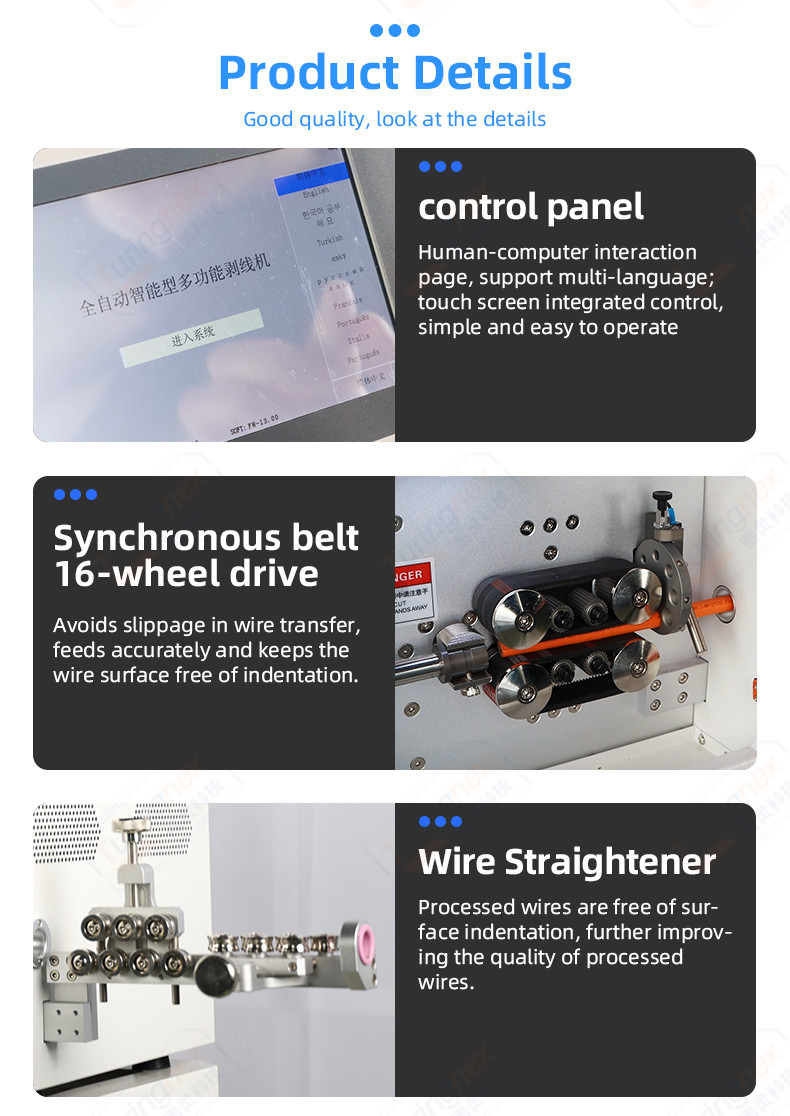

Wire feeding method：Belt feeding, cable without embossing marks and scratches.(with stripping and pressurizing function)
Driving method：16-wheel drive (feed stepper motors, tool holder servo motors);servo feeding optional
Lifting and loweringoperation：Digitally adjustable pressure wheel height
note：Ultimate cutting capacity 50 sq. ft.
Max. permissiblepassing diameter：￠18

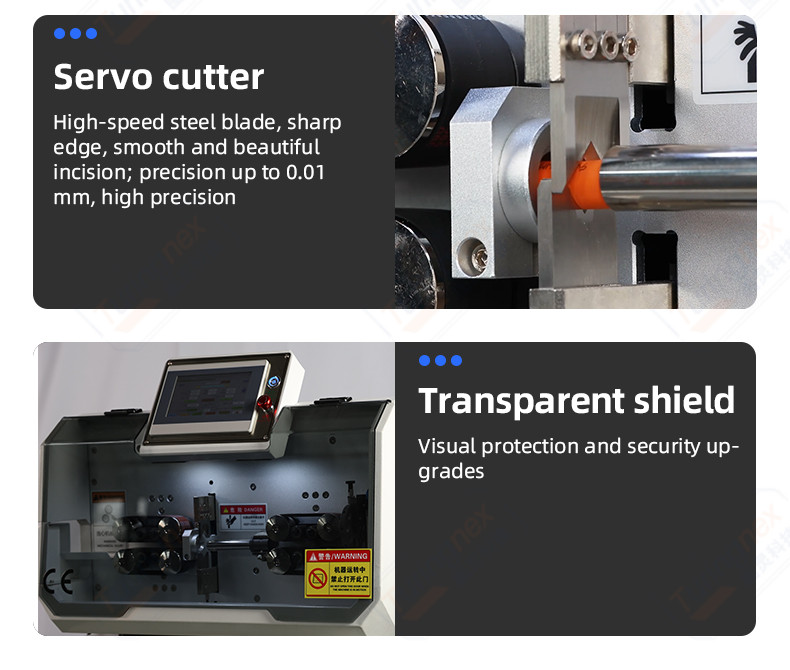

Blade Material：lmported high-speed steel
Size / Weight：680x605x520mm，90kg
features
1. Optional: MES system, IOT system, fixed-point coding function, center stripping function, external auxiliary equipment alarm;
2. User-friendly system, can be operated intuitively through the 7-inch color touch screen;
3. Modularized interface, convenient to link accessories and peripheral equipment;
4. Modular design, upgradeable in the future;
5. Various attached options, customizable system. Special cable processing, non-standard customization.

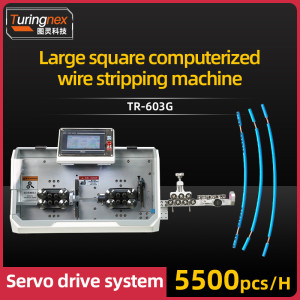

Related Products
