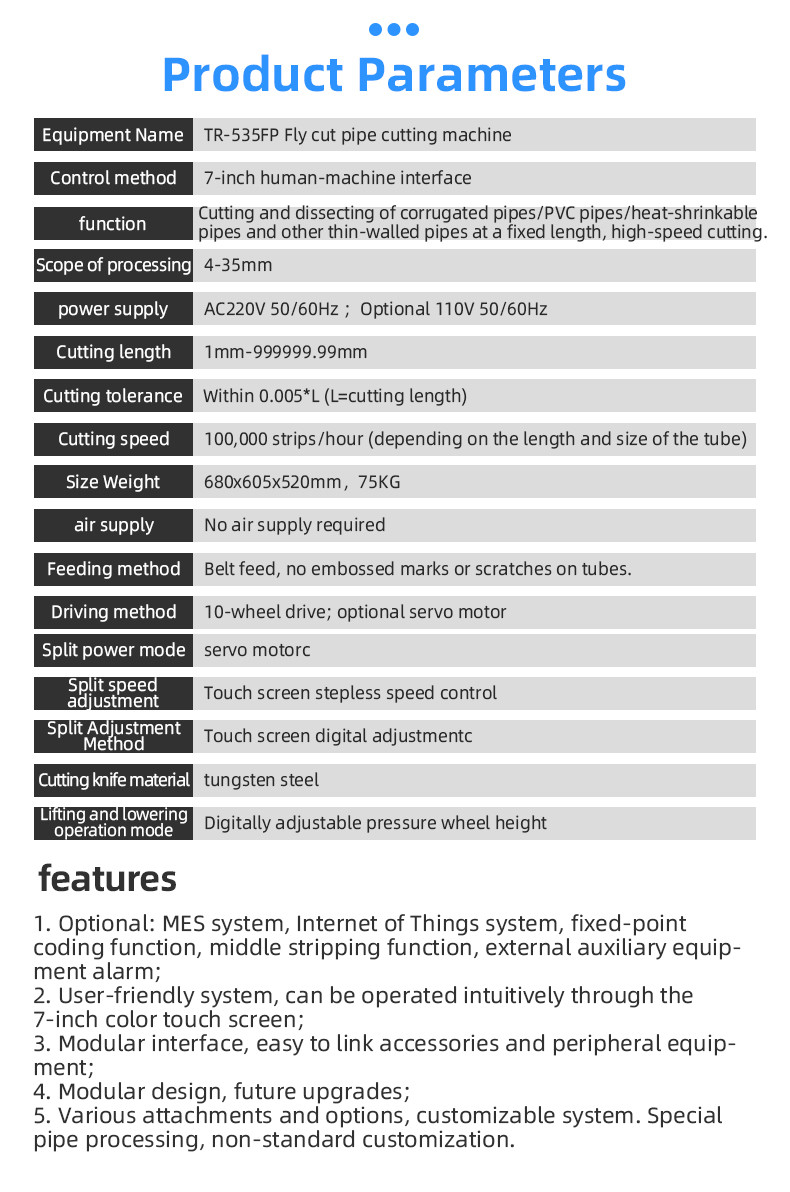

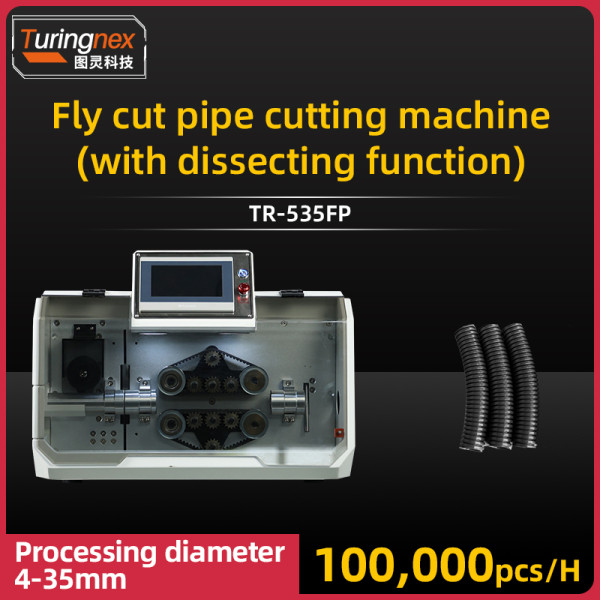

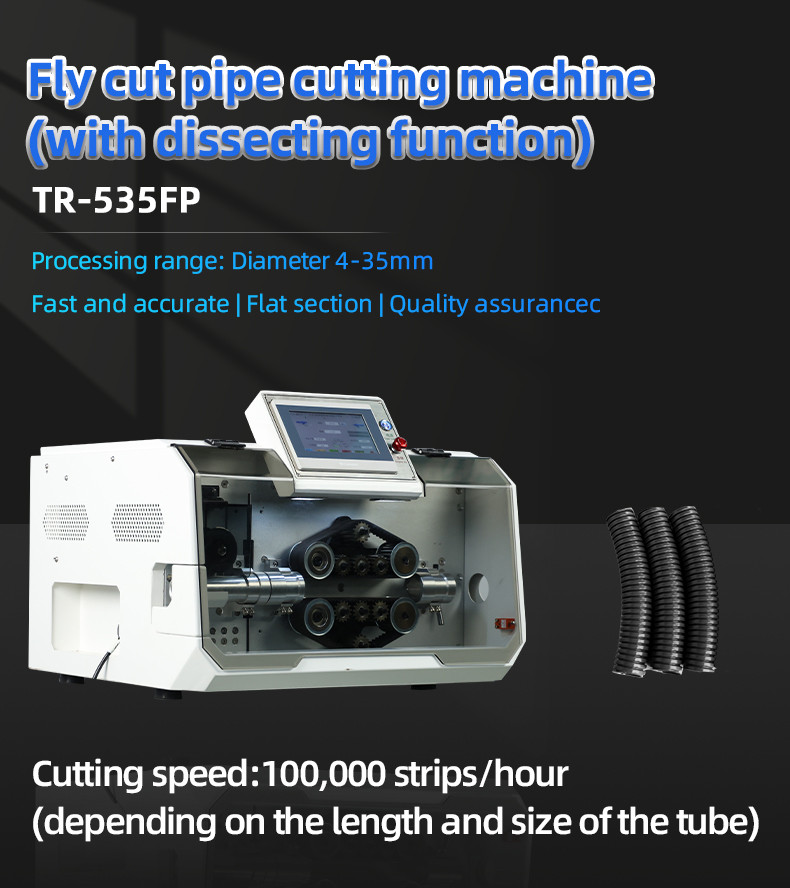

TR-535FP Fly cut pipe cutting machine (with dissecting function)

Display: 7-inch man-machine interface

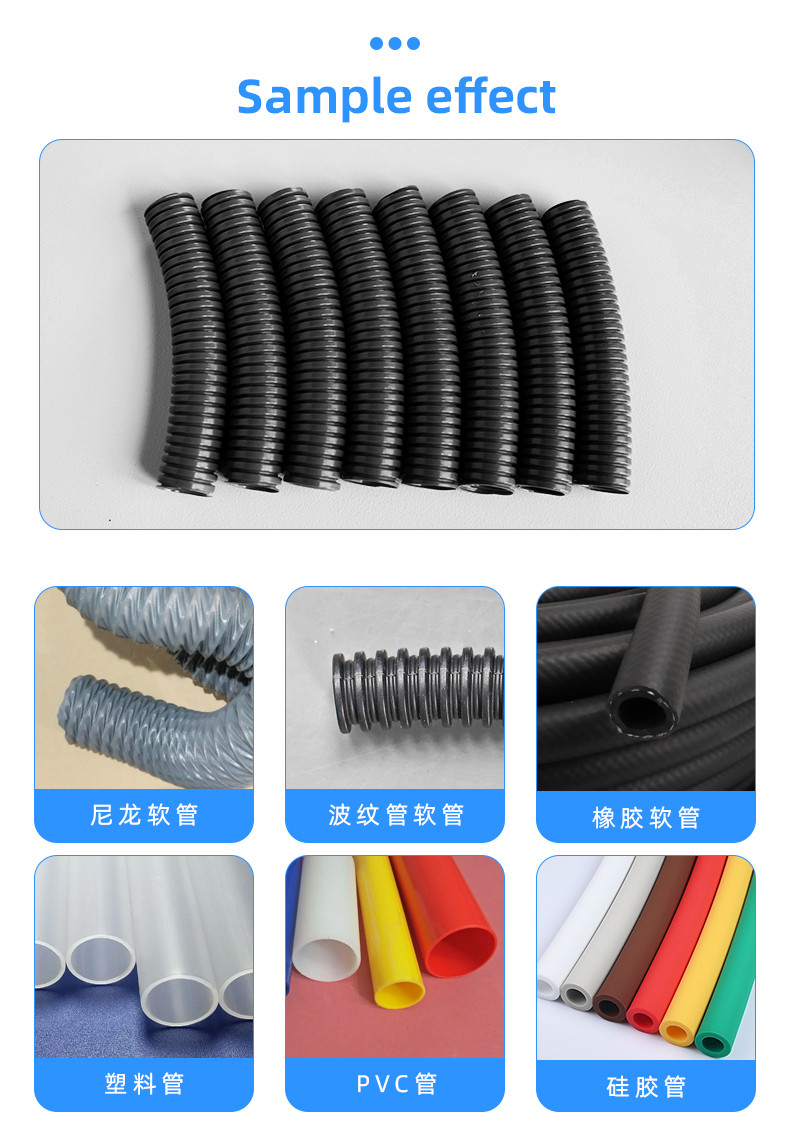

Functions: 1, corrugated pipe, PVC pipe, such as thin-walled pipe fixed length cutting and splitting; high-speed fly cutting;

2, splitting function: continuous splitting

Processing range: 4-35mm

Cutting length: 1mm-99,999,999.99mm

Cutting tolerance: 0.005 * L within (L = cutting length)

Productivity (times / hour): 100,000 / hour (according to the length and size of the pipe) (depending on the length and size of the tube)

Driving mode: 10-wheel drive; optional servo motor

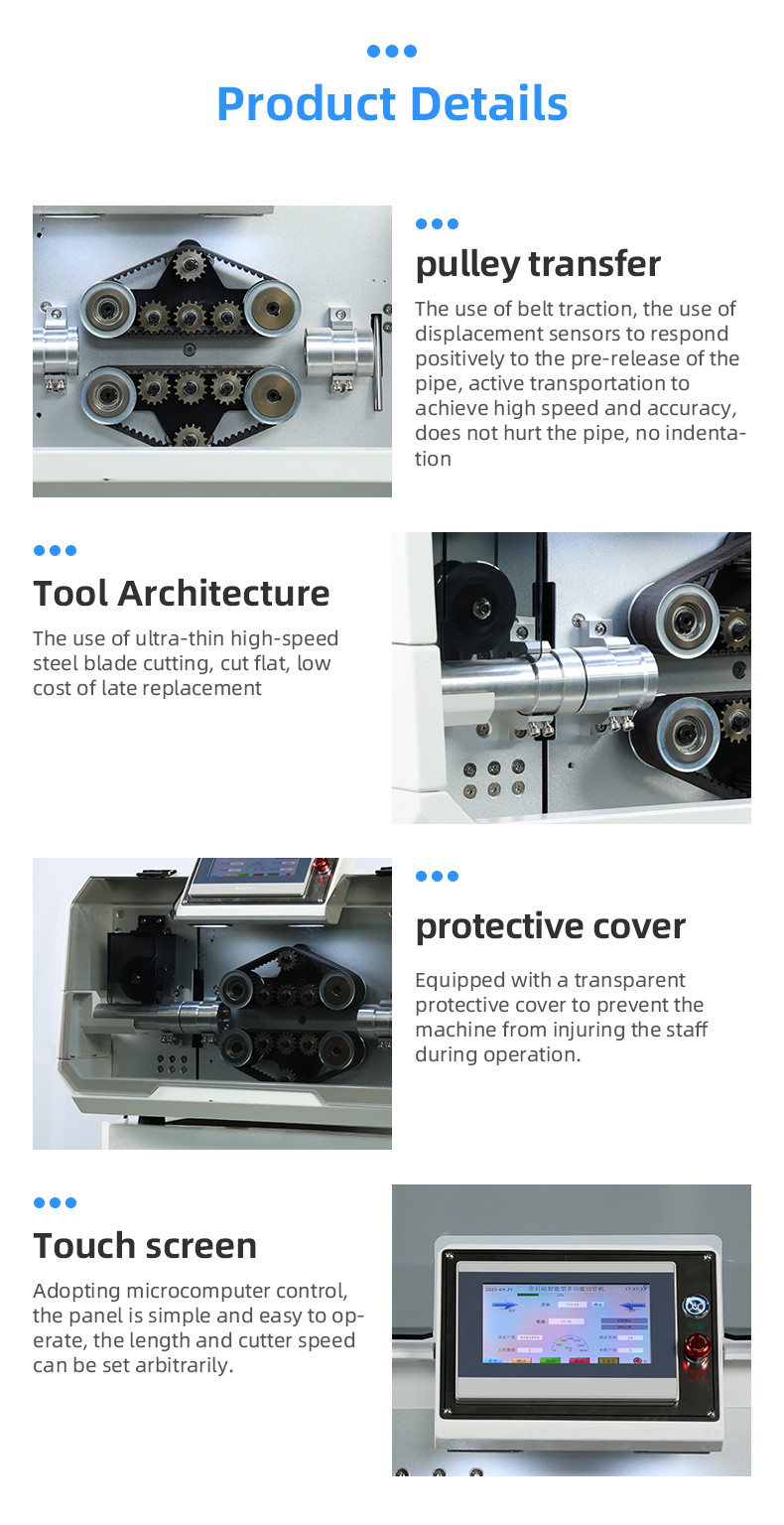

Feeding mode: belt feeding, no embossing and scratching of the tube.

Lifting operation mode: digital adjustment of the height of the pressure wheel

Slitting power mode: servo motor

Slitting speed adjustment: touch screen stepless speed adjustment

Slitting adjustment mode: touch screen digital adjustment

Slitter material: tungsten steel

Power supply: AC220V 50/60Hz; optional 110V 50/60Hz

Air supply: no air supply needed

Dimensions (L*W*H): 680*605*520mm

Net weight: 80kg
