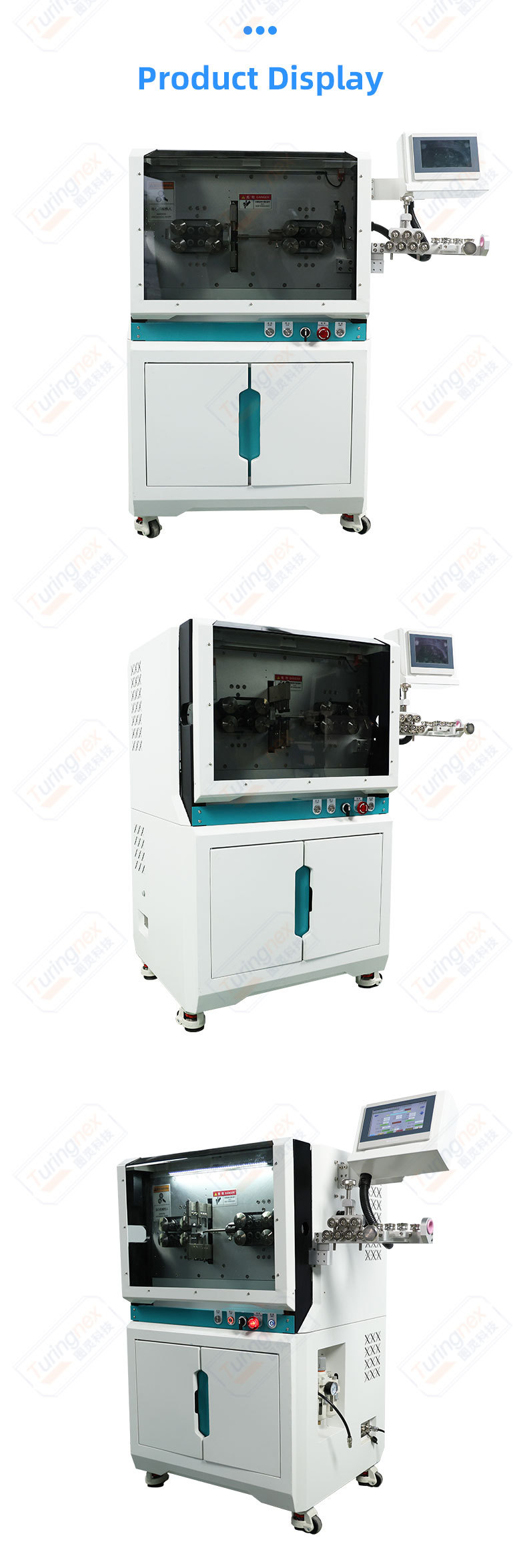

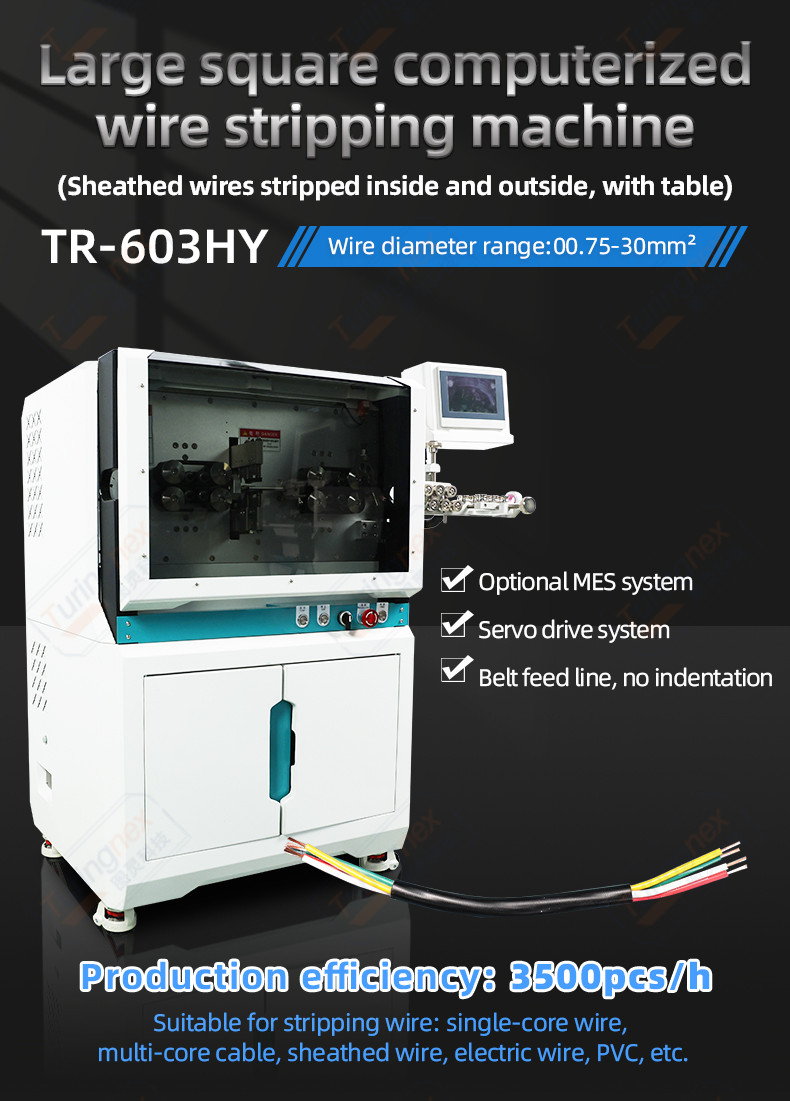

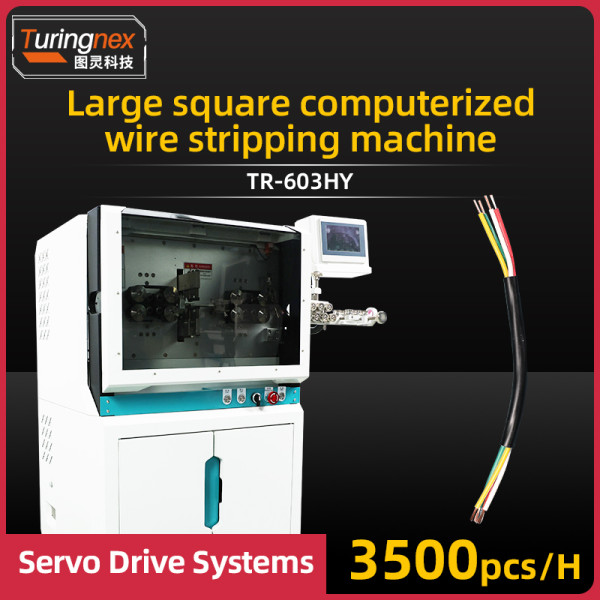

TR-603HY Large Square Computerized Wire Stripping Machine

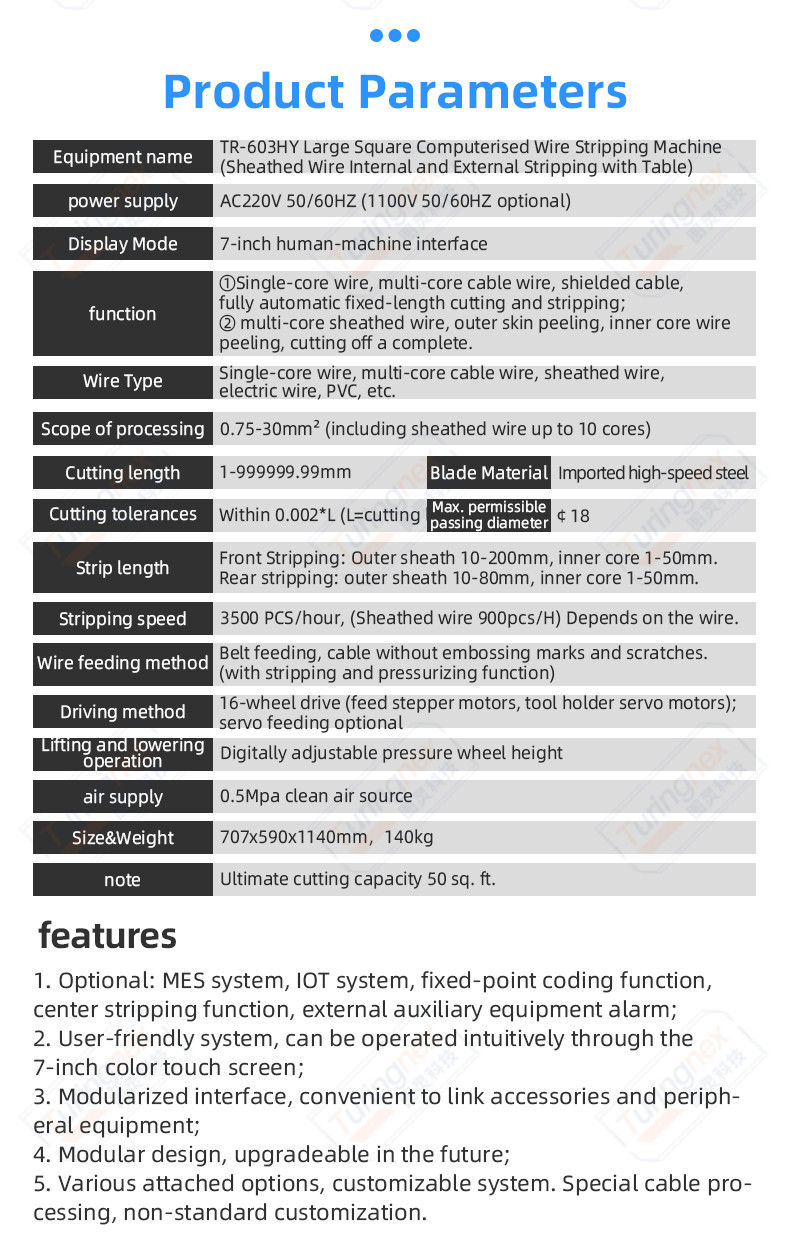

Size and weight: 707x590x1140mm, 140kg

Display: 7-inch human-machine interface

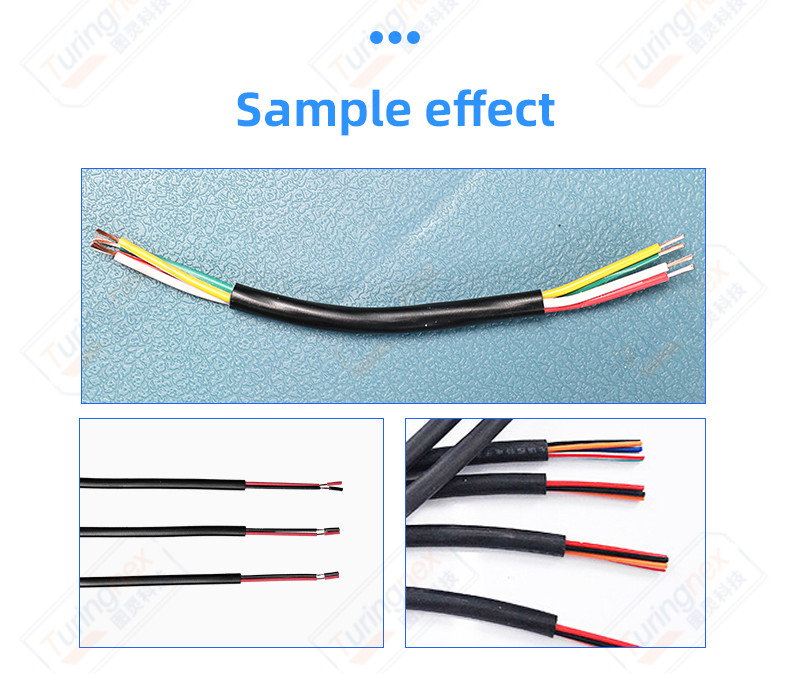

Functions: ① single-core wire, multi-core cable wire, shielded cable, automatic fixed-length cutting, stripping;

 ② multi-core sheathed wire, outer skin stripping, inner core wire stripping, cutting off in one go.

Wire type: single-core wire, multi-core cable wire, sheathed wire, electric wire, PVC, etc.

Processing range: 0.75-30mm²

Cutting length: 1-999999.99mm

Cutting tolerance: 0.002*L or less (L=cutting length)

Stripping length: front stripping: outer sheathing fully stripped 10-200mm, inner core wire 1-50mm

 Back stripping: outer sheathing fully stripped 10-80mm, inner core wire 1-50mm

Stripping speed: 3500 PCS/hour, (sheathed wire 900pcs/H) depending on the length and size of the wire

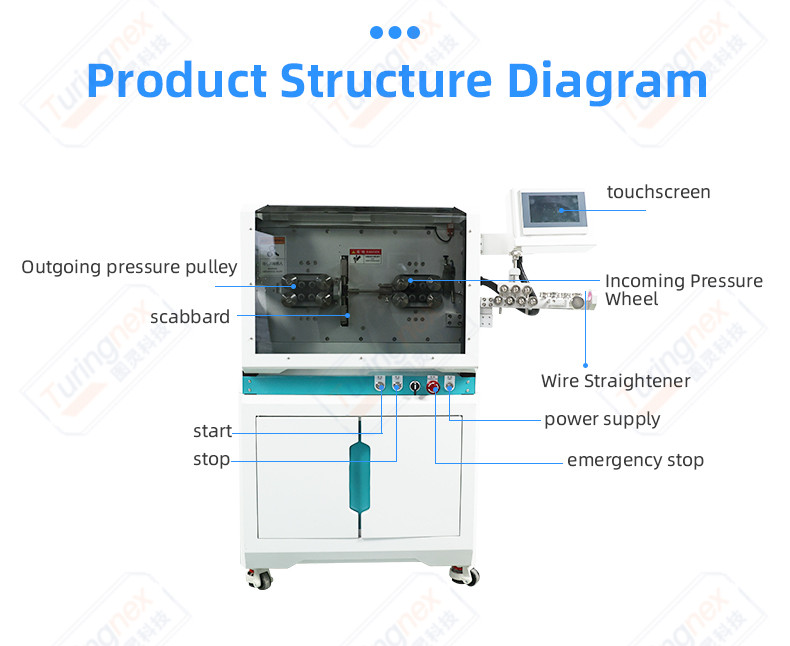

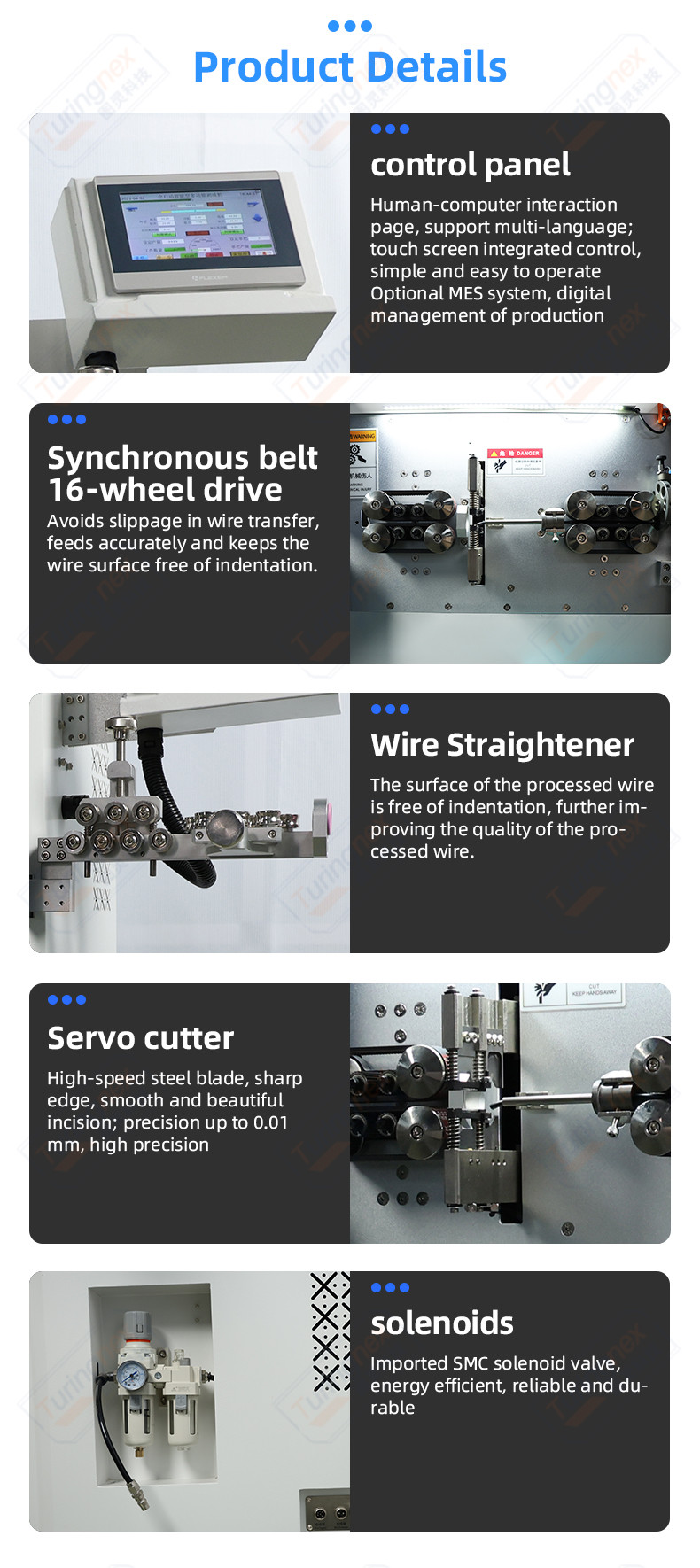

Feeding method: Belt feeding, no embossing and scratching on the cable. (with stripping pressurisation function)

Driving method: 16 wheel drive (feeding stepping motor, knife holder servo motor); optional servo feeding

Lifting operation: digital adjustment of the height of the pressure wheel

Allowed to pass through the maximum diameter: ¢ 18

Blade material: imported high-speed steel

Air source: 0.5Mpa clean air source

Remarks: Limit cut-off capacity 50 sq. ft.
