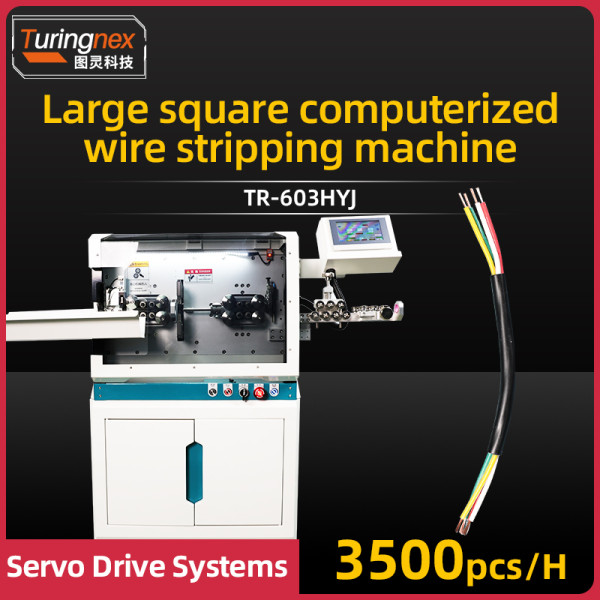

TR-603HYJ Large Square Computerized Wire Stripping Machine

Power supply: AC220V 50/60HZ (optional 1100V 50/60HZ)

Display: 7-inch man-machine interface

Function: ① single-core wire, multi-core cable line, shielded cable, fully automatic fixed-length cutting, stripping;

 ② multi-core sheathed wire, outer skin stripping, inner core wire stripping, cutting off at once.

Wire type: single-core wire, multi-core cable, shielded cable, electric wire, PVC, etc.

Processing range: 0.75-30mm²

Cutting length: 1-999999.99mm

Cutting tolerance: 0.002*L or less (L=cutting length)

Stripping length: front stripping: outer jacket fully stripped 10-200mm, inner core wire 1-50mm

 Back stripping: outer jacket fully stripped 10-80mm, inner core wire 1-50mm Stripping length: front stripped 10-200mm, inner core wire 1-50mm Stripping length: front stripped 10-200mm, inner core wire 1-50mm Stripping length: front stripped 10-200mm, inner core wire 1-50mm Core wire 1-50mm

Stripping speed: 3500 PCS/hour, (sheathed wire 900pcs/H) depending on the length and size of the wire

Feeding method: Belt feeding, no embossing and scratching on the cable. (with stripping and pressurising function)

Driving mode: 16 wheels drive (feeding stepping motor, knife holder servo motor)

Lifting operation mode: digital adjustment of the height of the pressure wheel

Dimensions and weight: 707x590x1140mm, 140kg

Allowed to pass through the maximum diameter: 18mm

Blade material: imported high-speed steel

Air source: 0.5Mpa clean air source
