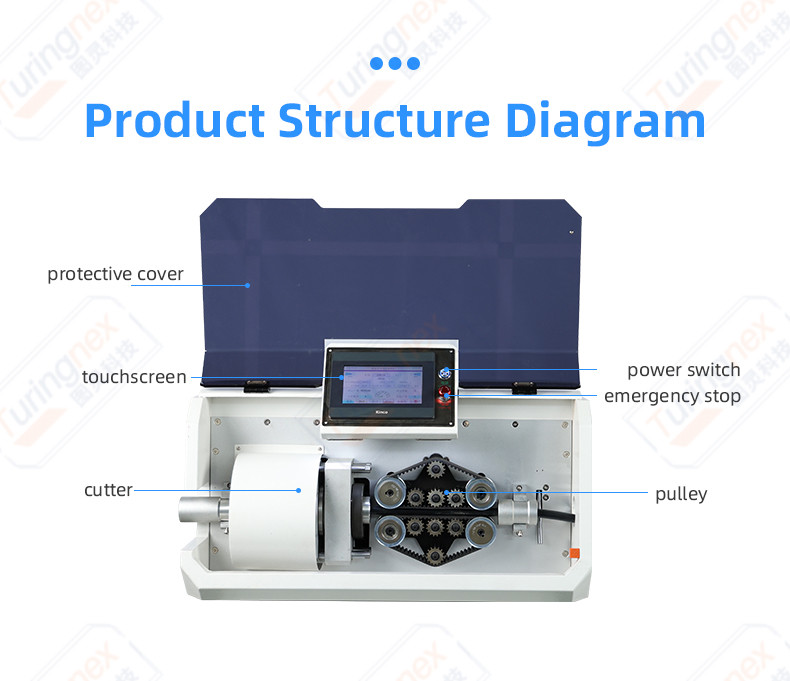

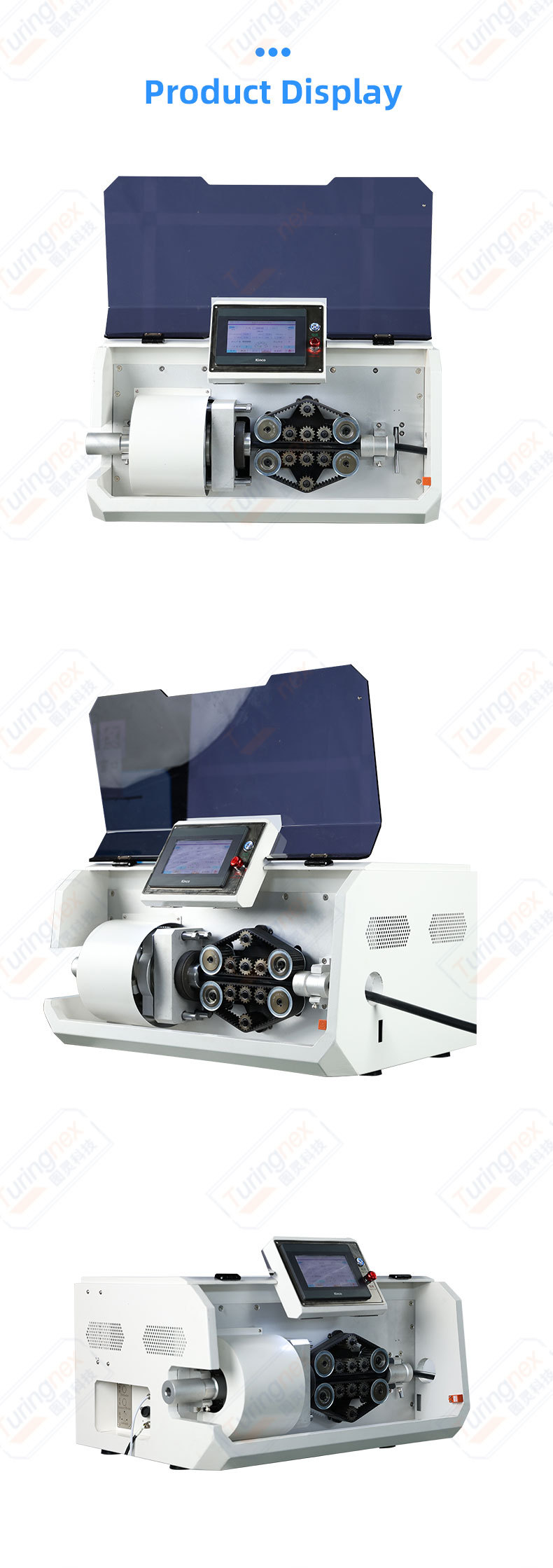

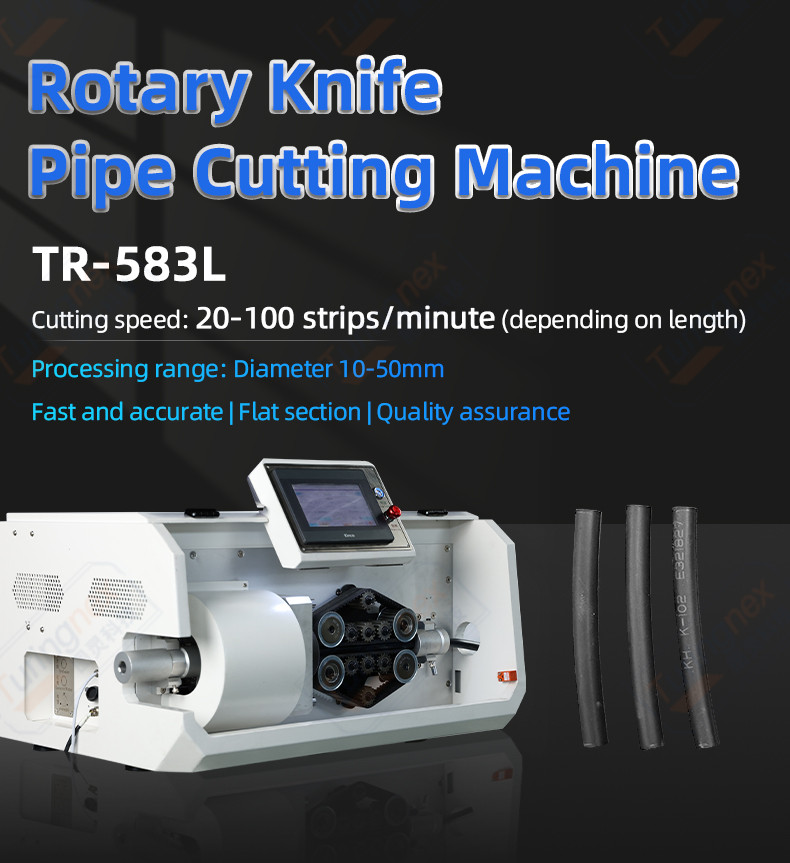

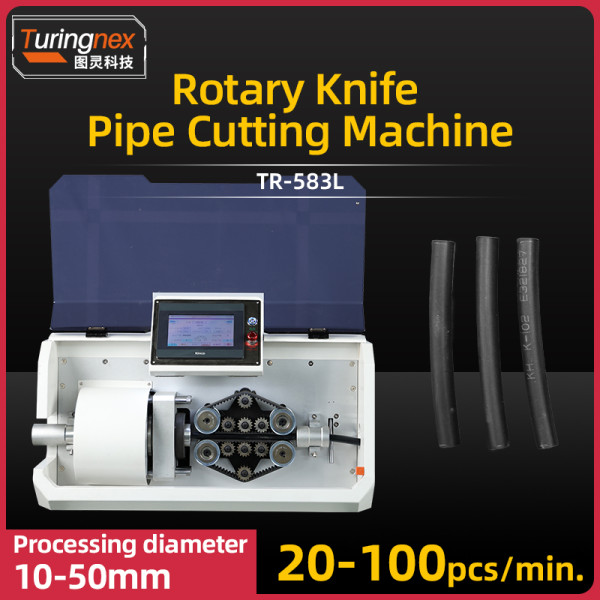

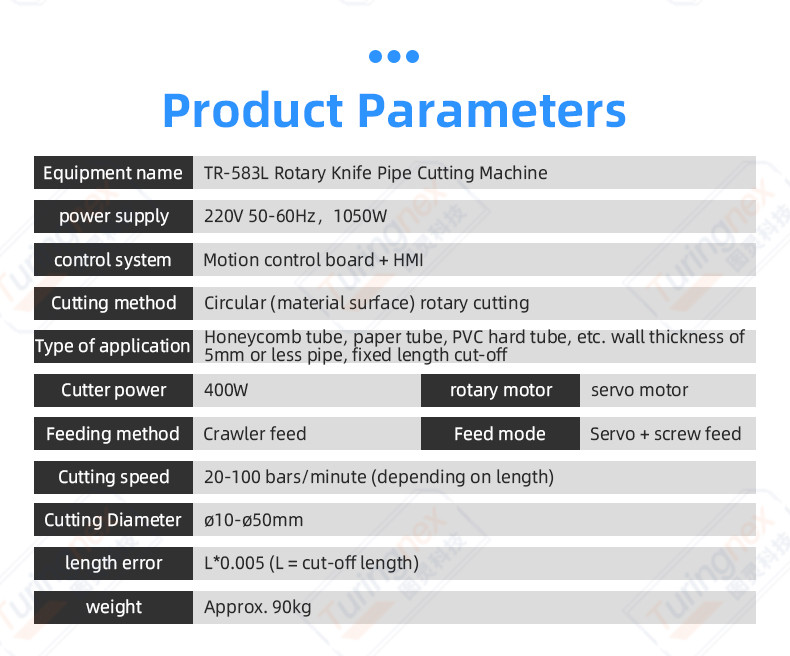

TR-583L Rotary Knife Pipe Cutting Machine

Control system: motion control board plus human-machine interface

Cutting mode: circumference (material surface) rotary cutting

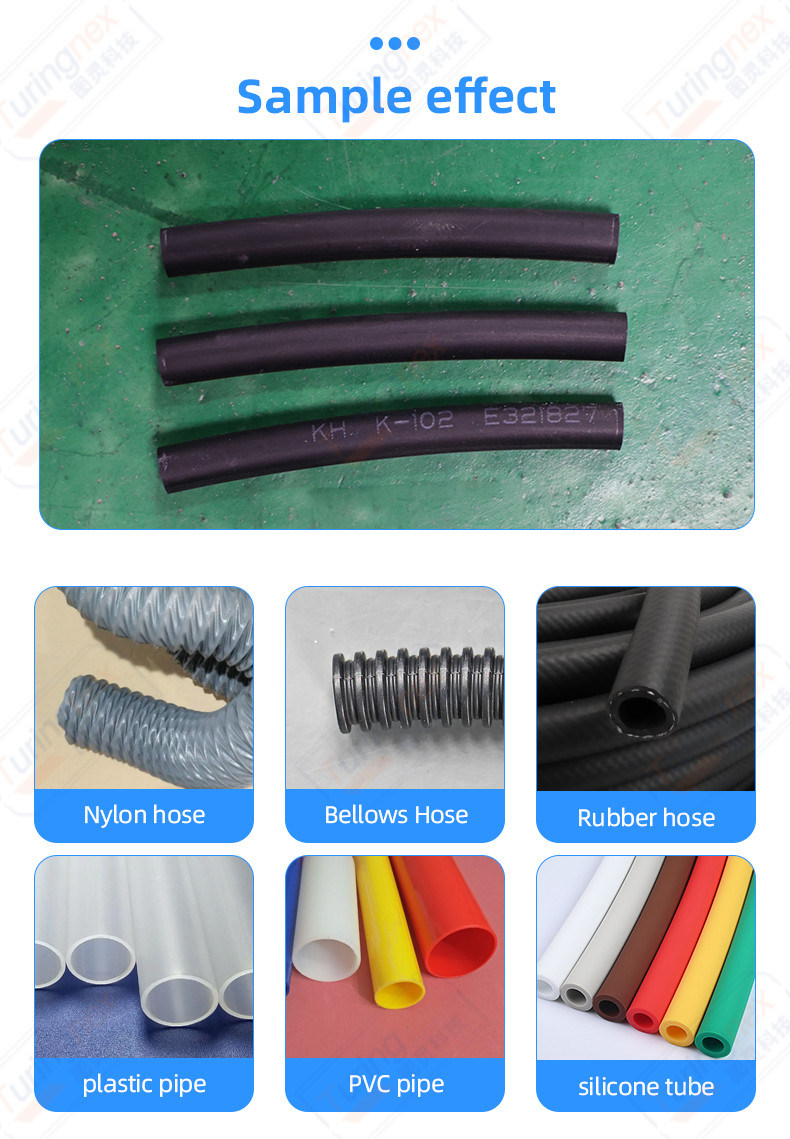

Applicable types: honeycomb pipe, paper pipe, PVC hard pipe, .... Wall thickness of 5mm or less pipe, fixed-length cutting

Cutting power: 400W

Rotary motor: servo motor

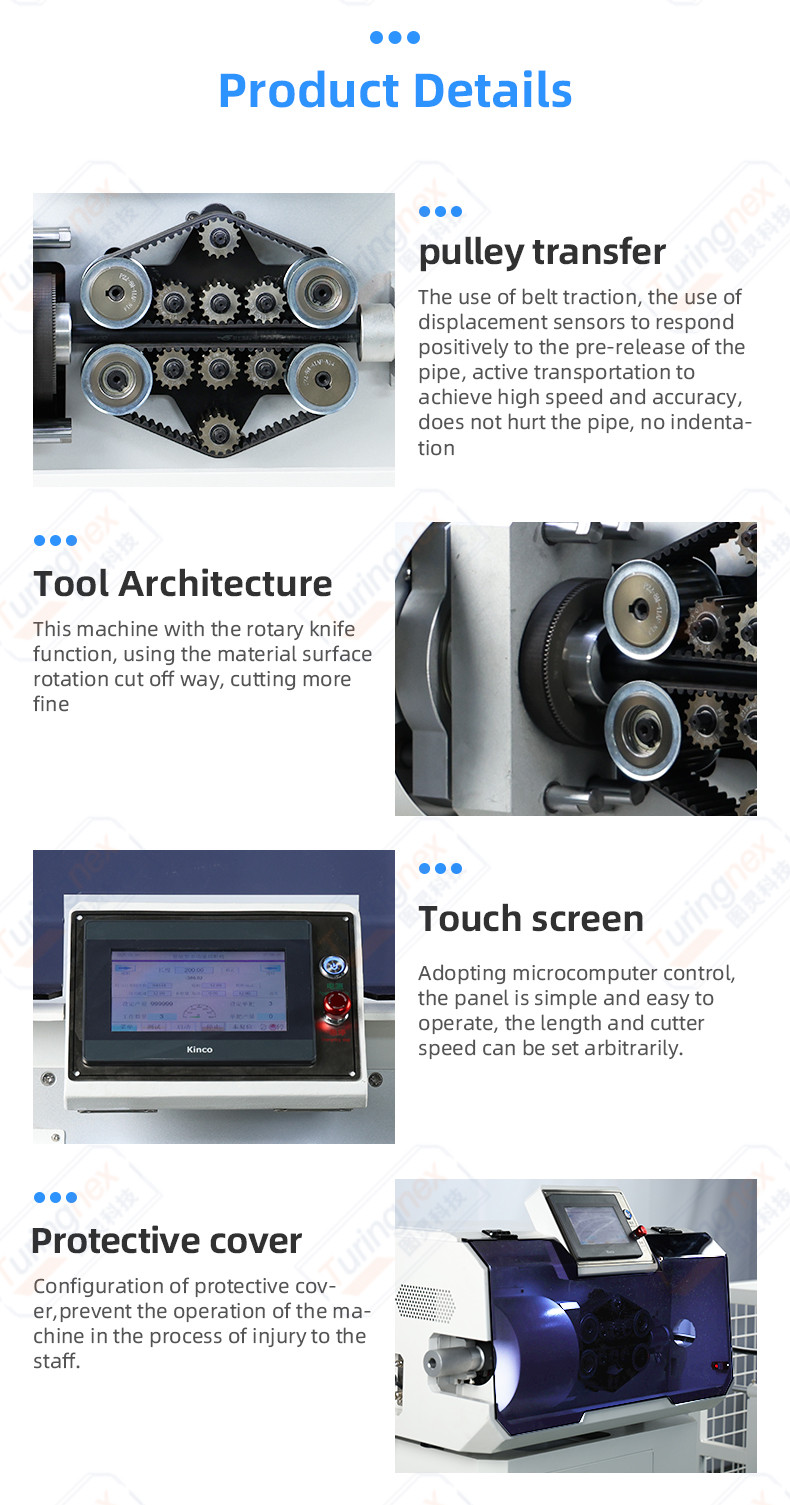

Feeding mode: crawler feeding

Knife feeding mode: servo plus screw feed

Power: 220V 50-60HZ

Air pressure: no need to

Power: 1050W

Cutting diameter: ø10-ø50mm

Length error: L*0.005 (L=cutting length)

Speed: 20-100 strips/min (depending on length) Weight: about 90Kg Speed: 20-100 strips/minute (depending on the length)

Weight: about 90Kg
