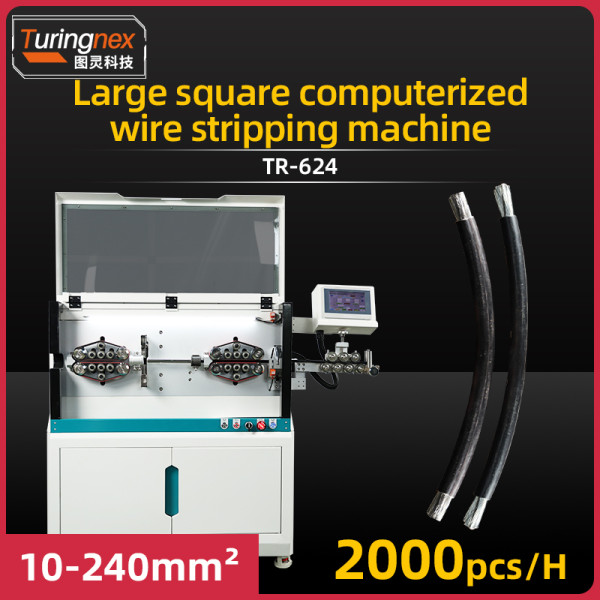

TR-624 Large square computerized wire stripping machine

Size and weight: 1020x590x1140mm,280kg

Display: 7 inch human-machine interface

Function: single-core wire, multi-core cable wire, shielded cable, fully automatic fixed-length cutting and stripping

Type of conductor: single-core wire, multi-core cable wire, shielded cable, electric wire, PVC, etc.

Processing range: 10-240mm²

Cutting length: 1mm-999999.99mm

Cutting Tolerance: within 0.002*L (L=cutting length)

Stripping length: front end full stripping: 1-300mm , front end half stripping 1-1000mm

 Back end full stripping: 1-150mm , back end half stripping 1-500mm

Stripping speed: 2000PCS/hour (according to the length of the wire, the size of the wire)

Feeding method: belt feeding, no embossed mark and no scratches on the cable. (with stripping and pressurising function)

Driving mode: 24-wheel drive (feeding stepping motor, knife frame\rotary knife servo motor); optional full servo

Lifting operation mode: digital adjustment of the height of the pressure wheel

Allowed to pass through the maximum diameter: ¢32

Air source: 0.5-0.8Mpa clean air source

Wheel lifting mode: stepping motor wheel lifting

Swinging conduit mode: pneumatic cylinder swinging conduit
