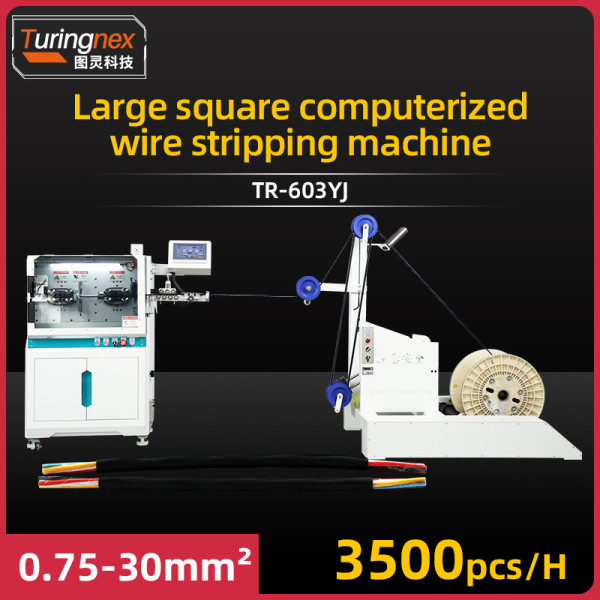

TR-603YJ Large square computerized wire stripping machine

Size and weight: 707x590x1140mm，140kg

Display: 7 inch human-machine interface

Function: single-core wire, multi-core cable wire, shielded cable, fully automatic fixed-length cutting and stripping

Type of conductor: single-core wire, multi-core cable wire, shielded cable, electric wire, PVC, etc.

Processing range: 0.75-30mm²

Cutting length: 1mm-999999.99mm

Cutting Tolerance: within 0.002*L (L=cutting length)

Stripping length: front end full stripping: 1-200mm , front end half stripping 1-1500mm

 Back end full stripping: 1-100mm , back end half stripping 1-300mm

Stripping speed: 3500PCS/hour (according to the length of the wire, the size of the wire)

Feeding method: belt feeding, no embossed mark and no scratches on the cable. (with stripping and pressurising function)

Driving mode: 16-wheel drive (feeding stepping motor, knife frame\rotary knife servo motor); optional full servo

Lifting operation mode: digital adjustment of the height of the pressure wheel

Allowed to pass through the maximum diameter: ¢18

Air source: 0.5Mpa clean air source

Wheel lifting mode: stepping motor wheel lifting

Swinging conduit mode: pneumatic cylinder swinging conduit

Note：Ultimate cutting capacity 50 sq. ft.
