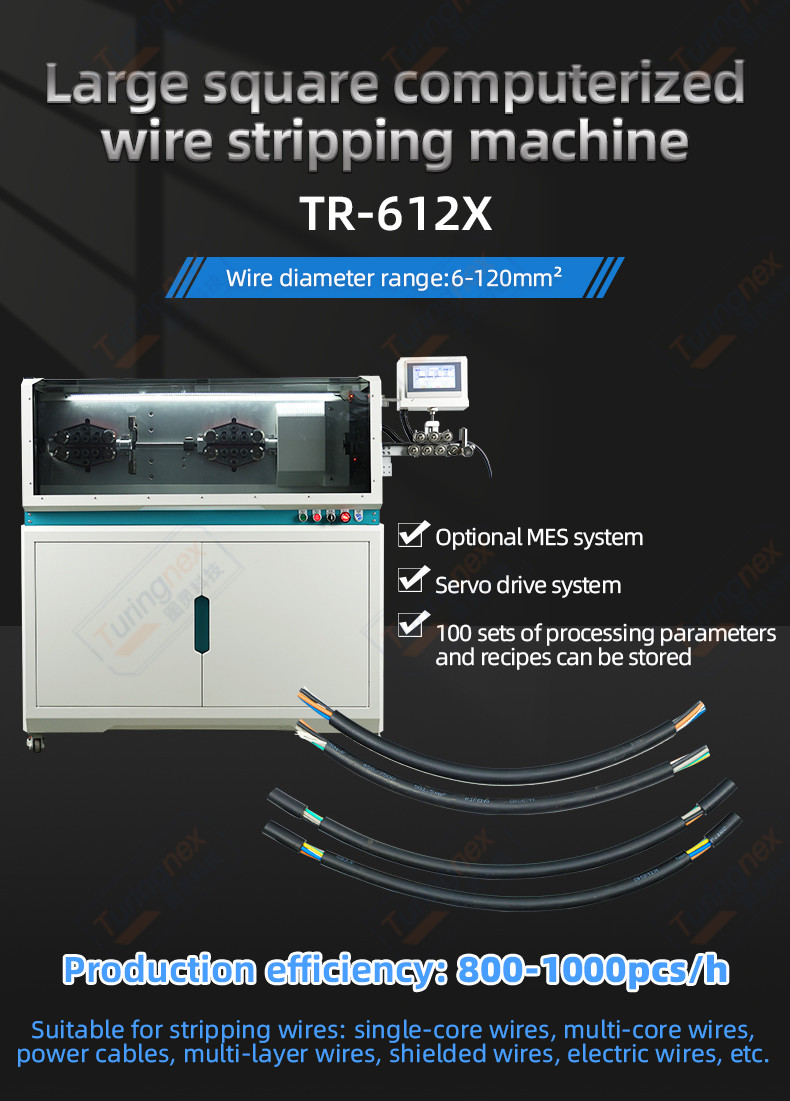

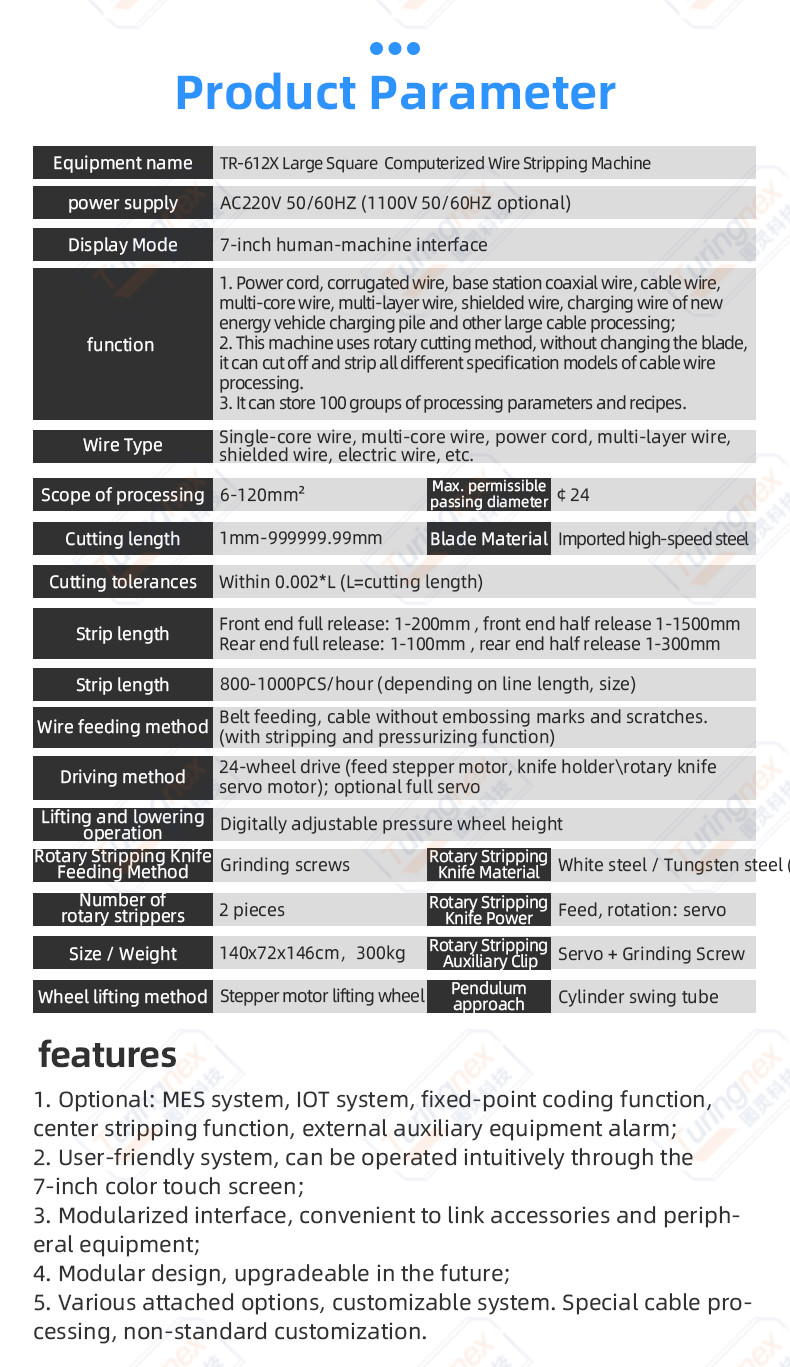

TR-612X Large square computerized wire stripping machine

Size and weight: 128x48x135cm, 180kg

Display: 7 inch human-machine interface

Function:

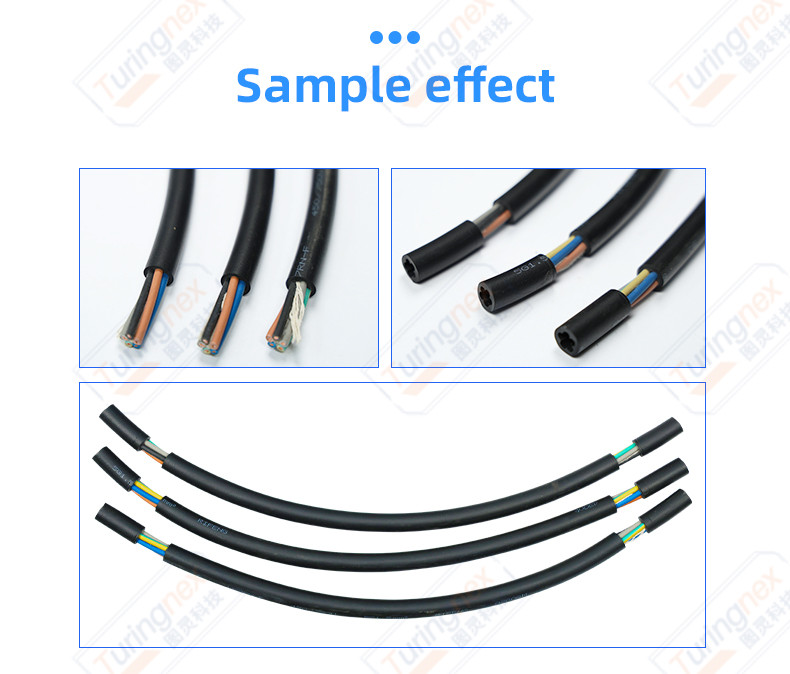

1, power line, corrugated line, base station coaxial line, cable line, multi-core line, multi-layer line, shielded line, charging line of new energy vehicle charging piles and other large cable processing;

2, this machine uses the rotary cutting method, without changing the blade, you can cut off and strip all the different specifications of the type of cable line. and stripping process without changing blades.

3, can store 100 groups of processing parameters and recipes.

Wire type: single-core wire, multi-core wire, power cord, multi-layer wire, shielded wire, electric wire, etc.

Processing range: 6-120mm²

Cutting length: 1mm-999999.99mm

Cutting tolerance: 0.002*L or less (L=cutting length)

Stripping length: front end full stripping: 1-300mm, front end half stripping 1-1000mm

 Rear end full stripping: 1-150mm, rear half stripping 1-500mm Stripping speed: 1-150mm, rear half stripping 1-1,000mm. 1-500mm

Stripping speed: 800-1000PCS/hour (according to the length and size of the wire)

Wire feeding method: belt feeding, no embossing and scratching on the cable. (with stripping pressurisation function)

Driving method: 24 wheel drive (feeding stepping motor, knife holder\rotary knife servo motor); optional full servo

Lifting operation: digital adjustment of the pressure wheel height

Allowed to pass through the maximum diameter: ¢ 24

Blade material: imported high-speed steel

Rotary stripping knife feeding method: grinding screw

Rotary stripping knife number: 2 pieces

Rotary stripping knife material: white steel/tungsten steel (optional)

Rotary stripping knife power: feeding: servo. Rotation: servo

Stripping auxiliary clamp: servo + grinding screw

Wheel lifting mode: stepping motor lifting wheel

Pendulum tube mode: cylinder pendulum tube
