TR-MAX2-S95 Semi-Automatic BVR 95 Square Wire Stripping Machine
TR-MAX2-S95 Semi-Automatic BVR 95 Square Wire Stripping Machine
| Categories | Wire Stripping and Twisting Machine |
|---|---|
| Brand | Turing |
| Model | TR-MAX2-S95 |
| Power | AC220V/50HZ, |
| Name | Mute Terminal Machine |
| Feature | Stable Performance |
| Warranty | 1year |
| Contact | Lily 0086-13715588365 |
| FOB port | shenzhen ,guangzhou ,zhongshan |
| Terms of Payment | Western Union, MoneyGram, T/T |
| Update Time | Dec 4,2023 |
Dimensions: 500mm×620mm×1180mm length X width X height
Weight: 130KG Power: 1000W
Power supply: 220V/110V 50/60HZ
Display mode: Chinese and English operation interfaces can be switched each other (7-inch touch screen is used)
Processing circular sheath outer diameter: the maximum outer diameter of 15 mm can be cut and peeled round sheath
Processing maximum cross-sectional area: 1-95mm2
Air pressure: 0.8Mpa
The largest diameter of the catheter: ￠22
Peeling accuracy: ±0.2mm
Cutting length: up to 400m
Stripping length of round sheath: full stripping of wire ends (1-200mm) full stripping of wire tails (1-150mm)

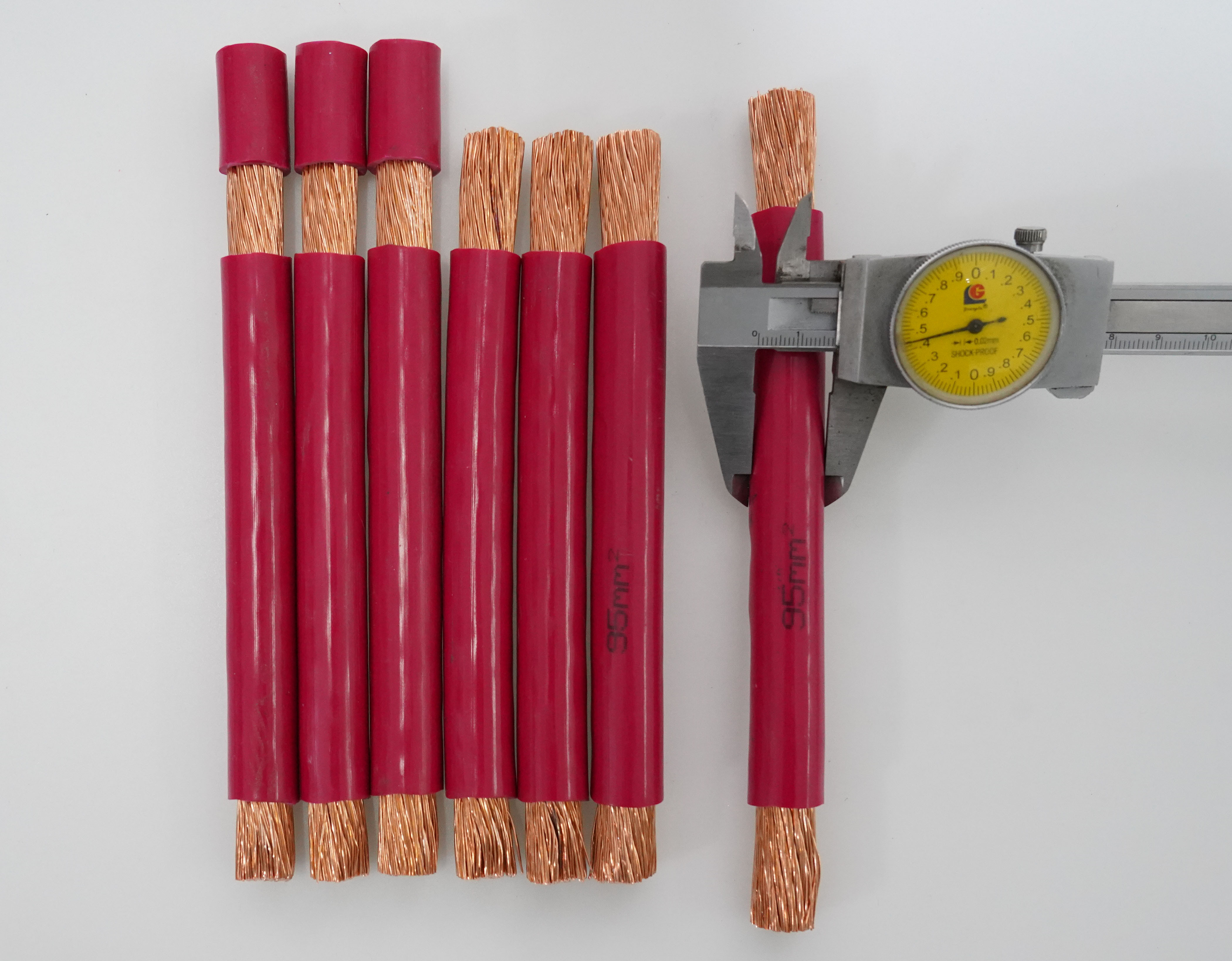

95 square stripping length: head stripping 1-50MM, tail stripping 1-50MM
Blade material: imported high-speed steel
Stripping speed: 200mm length unit: 3000-4000 wires/hour
Drive mode: 8-wheel drive (silent hybrid stepper motor, each step advances 0.1mm)
Tool post drive mode: (servo motor drive, ball grinding screw)
