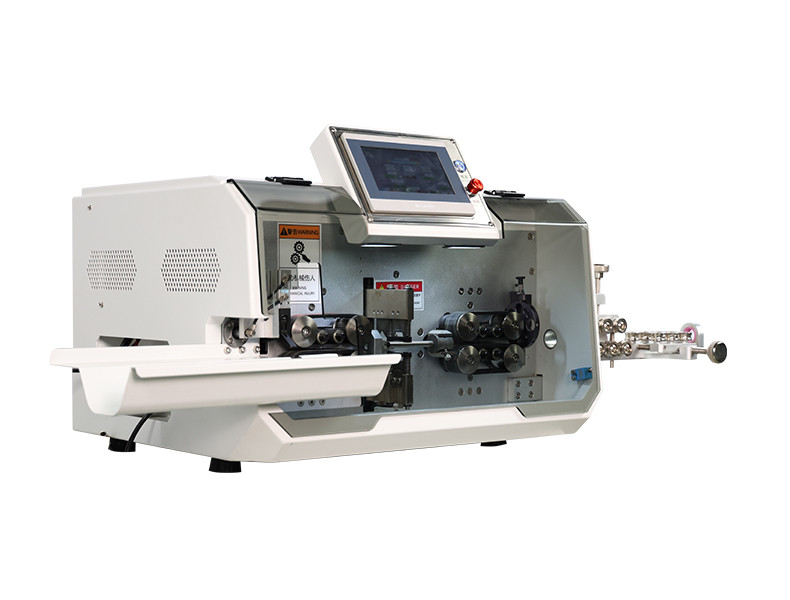

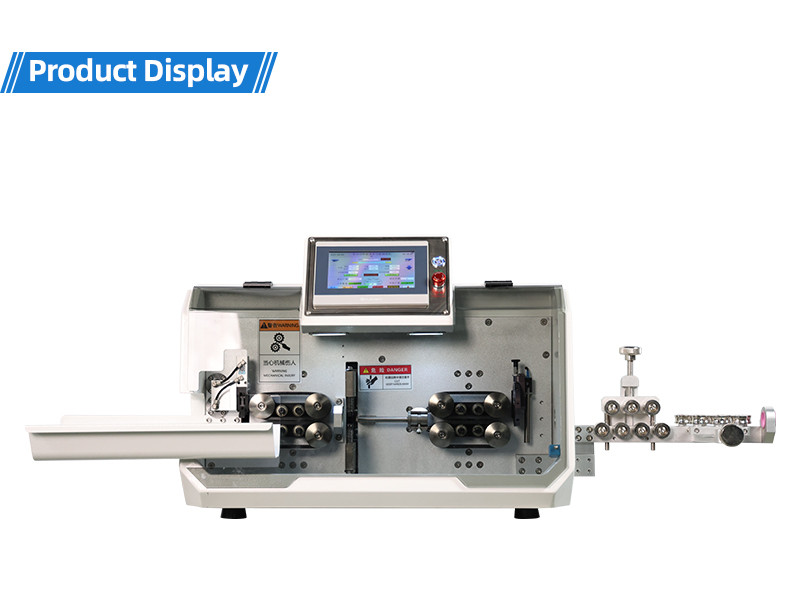

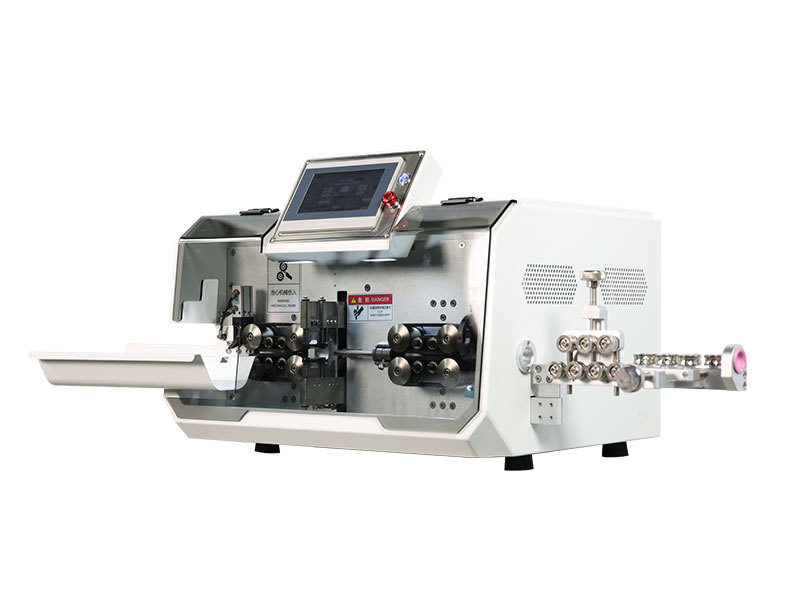

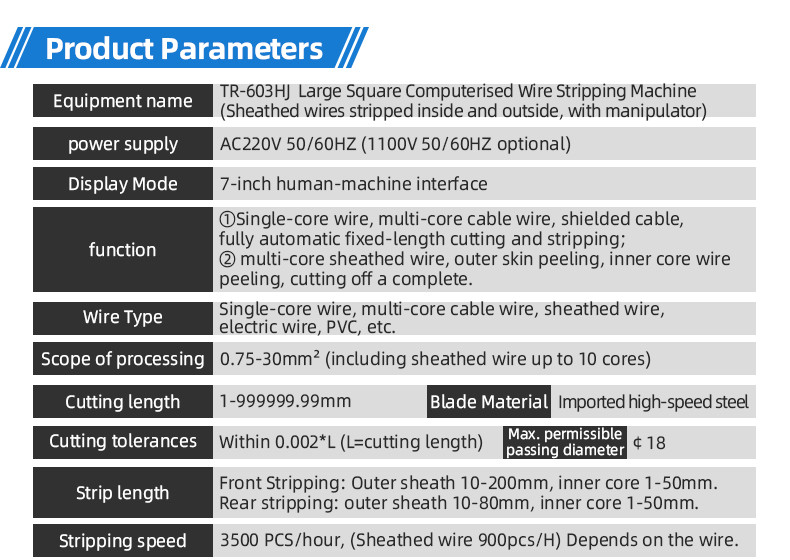

TR-603HJ Large square computerized wire stripping machine (Wire diameter range:0.75-30mm²)

Size and weight: 680x605x520mm, 95kg

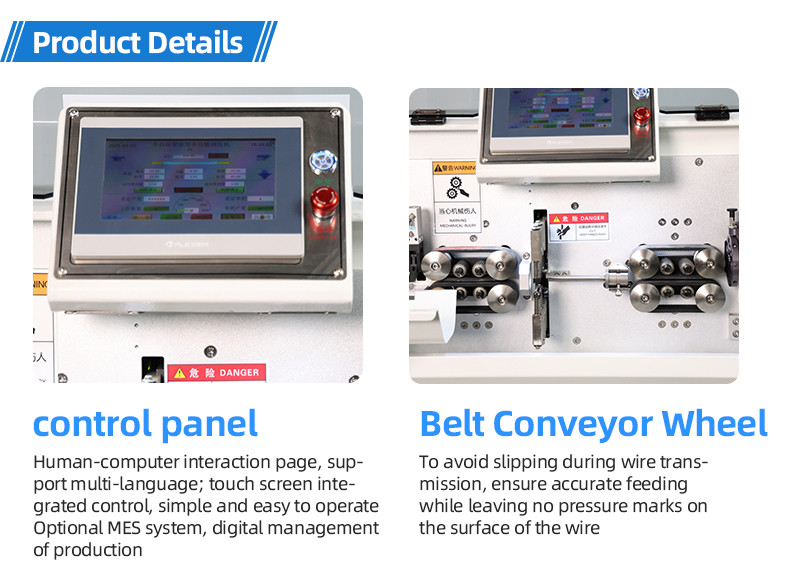

Display mode: 7-inch human-machine interface

Function: ① Single core wire, multi-core cable wire, shielded cable, fully automatic fixed length cutting and stripping;

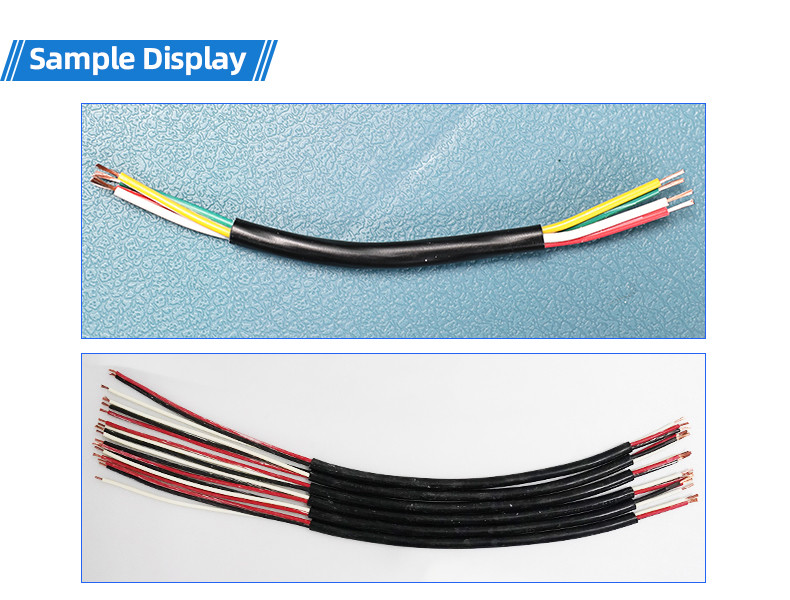

② Multi core sheathed wire, with the outer layer stripped and the inner core wire stripped and cut in one go.

Wire types: single core wire, multi-core cable, shielded cable, wire, PVC, etc

Processing range: 0.75-30mm ²

Cutting length: 1mm-999999.99mm

Cutting tolerance: within 0.002 * L (L=cutting length)

Peeling length: Front end fully detached: 1-200mm, front end half detached: 1-1500mm

Back end full detachment: 1-100mm, back end half detachment 1-300mm

Wire stripping speed: 3500 PCS/hour, (900pcs/H for sheathed wire) depending on the length and size of the wire

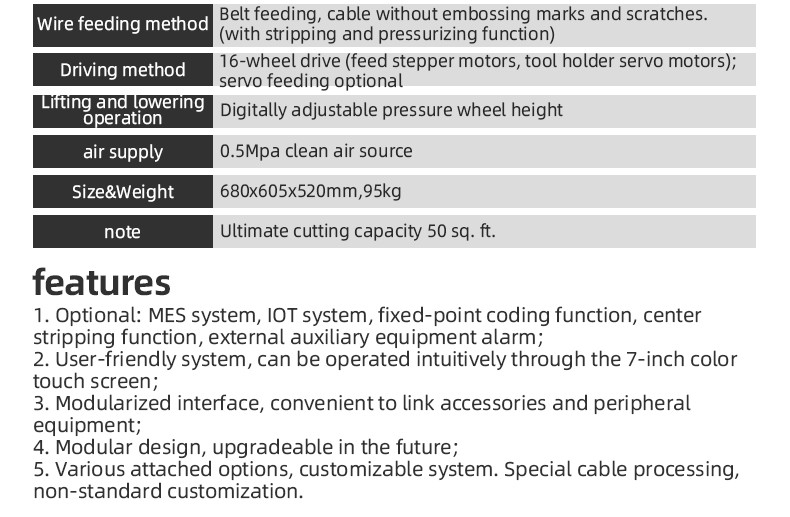

Wire feeding method: Belt feeding, cable without embossing or scratches. (with peeling and pressure function)

Drive mode: 16 wheel drive (feeding stepper motor, tool holder/rotating tool servo motor); Optional full servo

Lifting operation mode: digital adjustment of pressure wheel height

Maximum allowable diameter: ￠ 18

Gas source: 0.5Mpa clean gas source

Note: Maximum cutting capacity of 50 square meters
