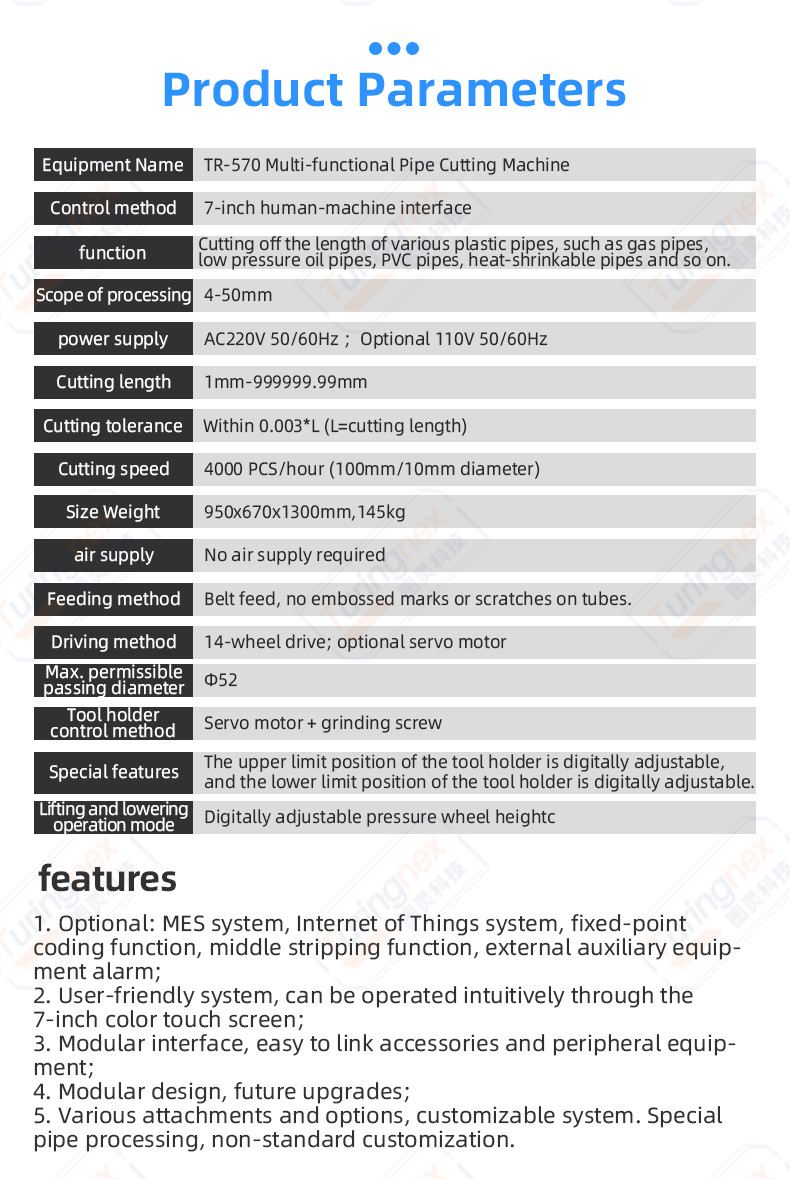

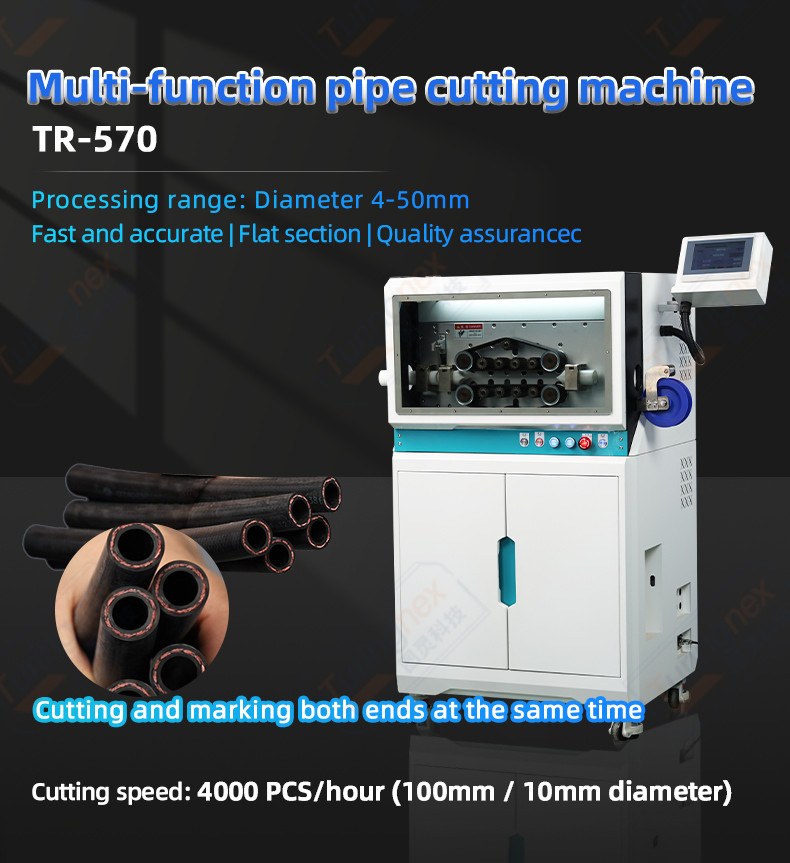

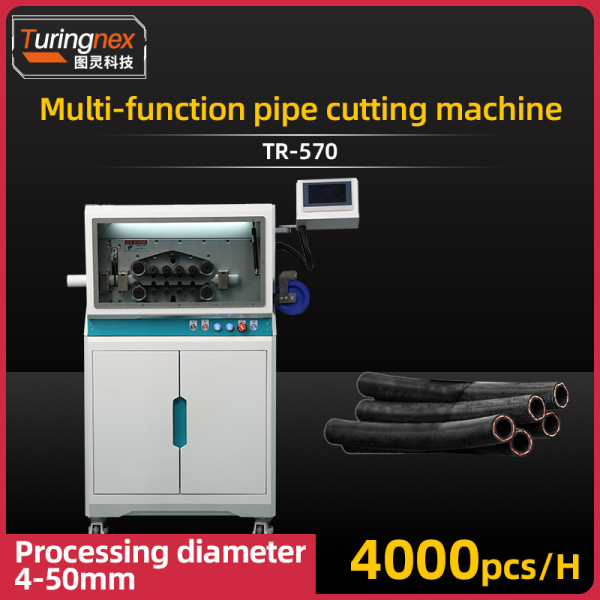

TR-570 Multi-functional Pipe Cutting Machine

Display: 7-inch man-machine interface

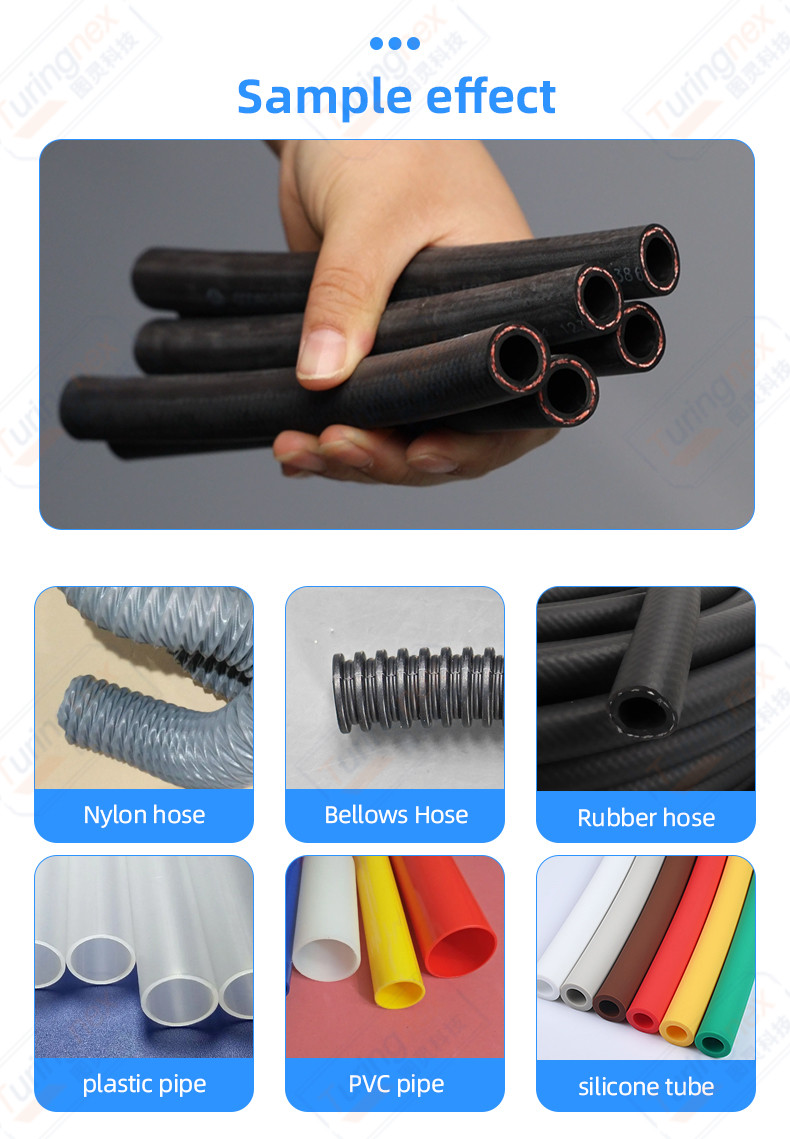

Functions: 1, gas pipe / low-pressure oil pipe / PVC pipe / heat-shrinkable pipe, and other kinds of plastic tubing cut off at a fixed length.

Processing range: 4-50mm

Cutting length: 1mm-999999.99mm

Cutting tolerance: within 0.003*L (L=cutting length)

Allowed to pass the maximum diameter: Φ52

Productivity: 4000 PCS/hour (100mm/diameter 10mm)

Driving mode: 14-wheel drive; servo motor can be optionally equipped

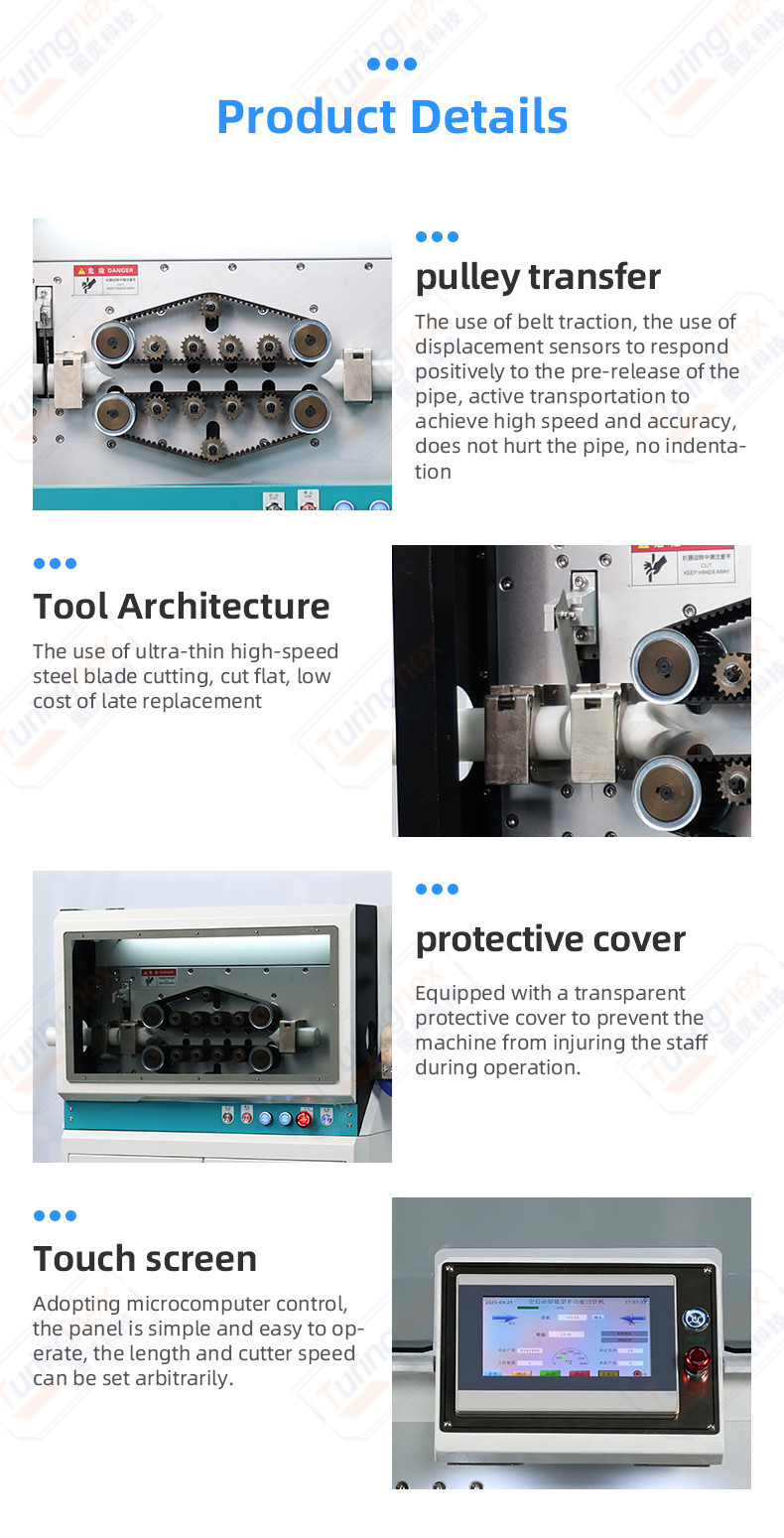

Feeding mode: belt feeding, no embossed mark and no scratches of the pipe.

Knife holder control mode: servo motor + grinding screw

Special function of the model: the upper limit position of the knife holder is digitally adjustable, the lower limit position of the knife holder is digitally adjustable

Lifting and lowering operation mode: digitally adjusting the height of the press wheel

Power supply: AC220V 50/60Hz; optional 110V 50/60Hz

Air source: no need of air source

Dimension: 950*670*1300 (LWH)

Net weight: 145kg

Translated with DeepL.com (free version)

2. User-friendly system, can be operated intuitively through the 7-inch color touch screen;

3. Modular interface, easy to link accessories and peripheral equipment;

4. Modular design, future upgrades;

5. Various attachments and options, customizable system. Special pipe processing, non-standard customization.
